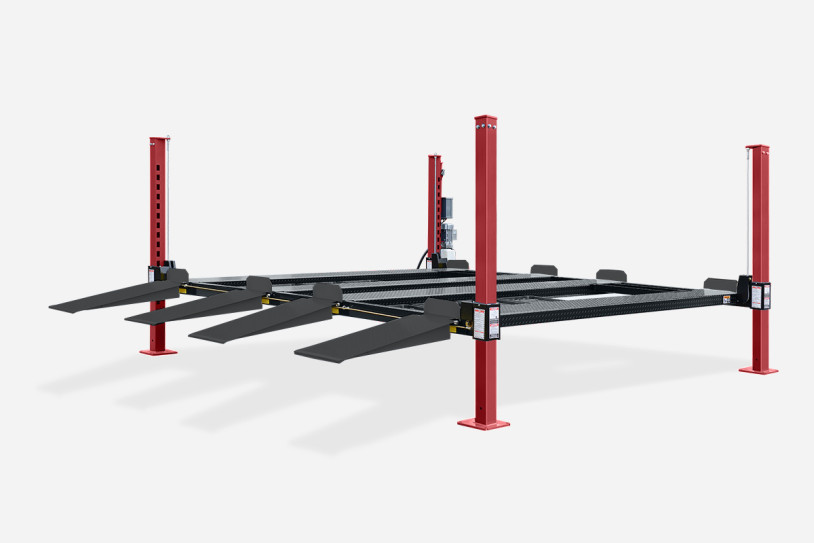

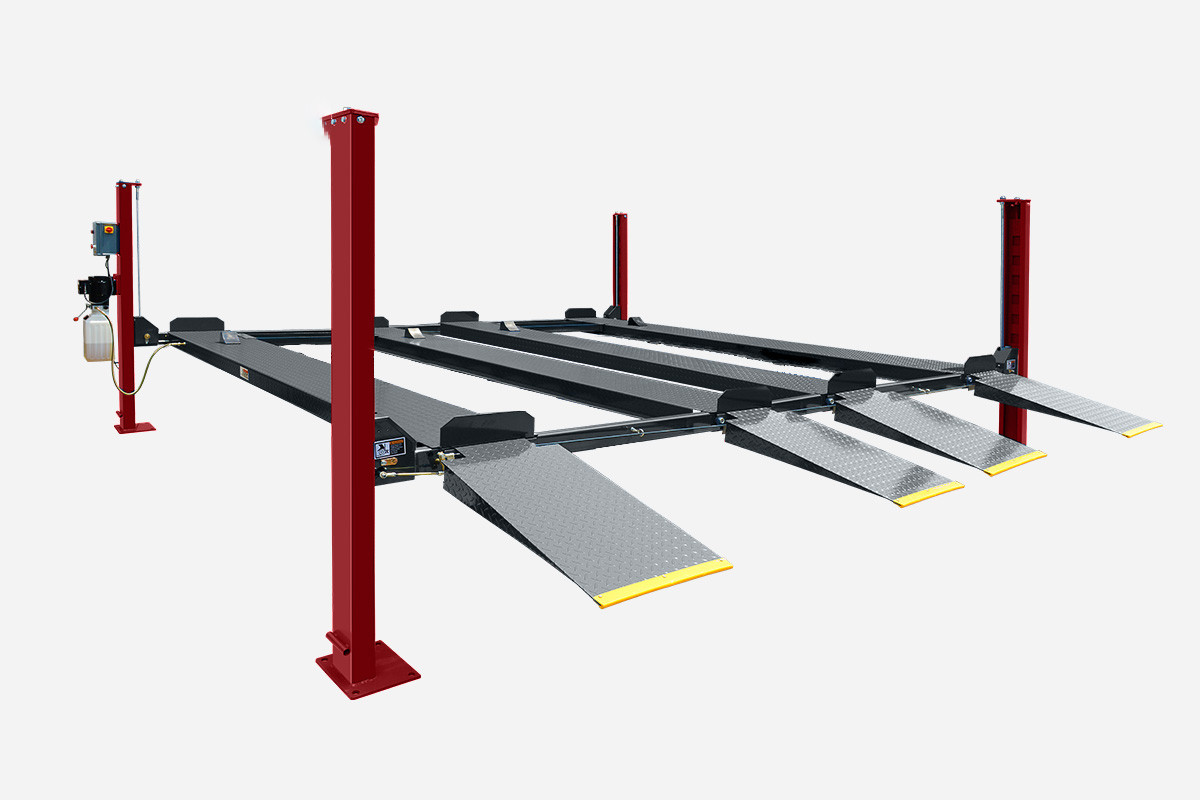

4-post parking lift Kroemer FP36

Kroemer FP36 4-Post Double Parking Lift – 3,600 kg Lifting Capacity, 1,850 mm Lifting Height and Space-Saving Parking Solution

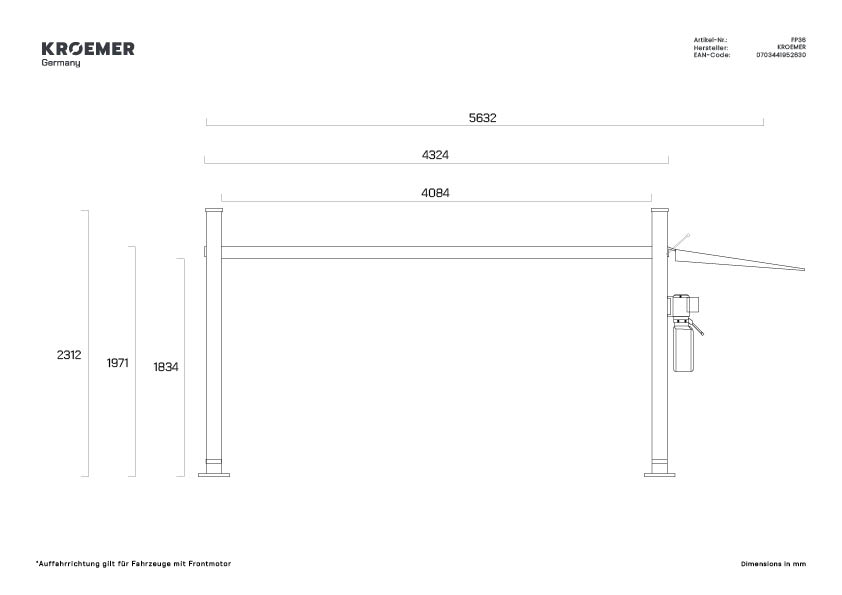

• Lifting height: 1,971 mm
• Heavy-duty drive-on ramps

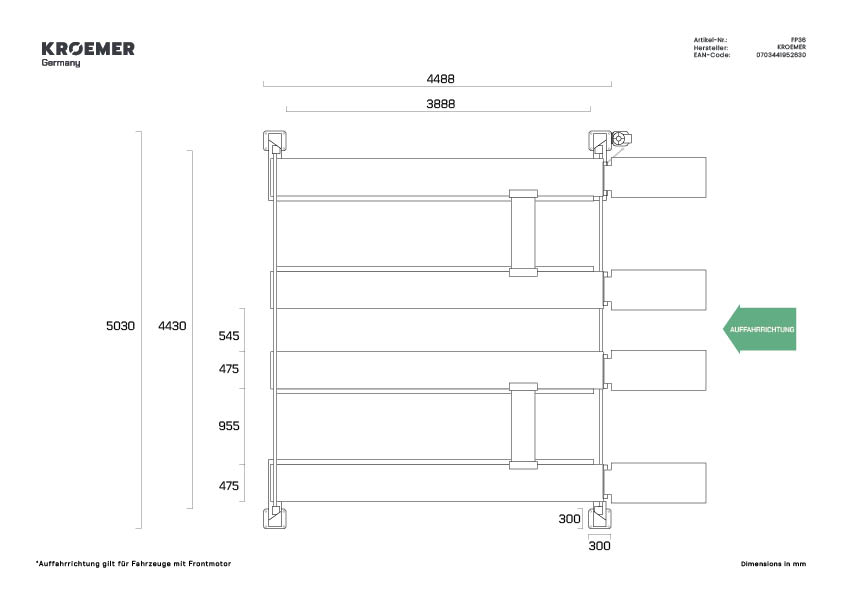

• Runway (L/W): 4,324 mm / 475 mm
• Fast lifting time of 50 seconds
• Ideal where space is limited

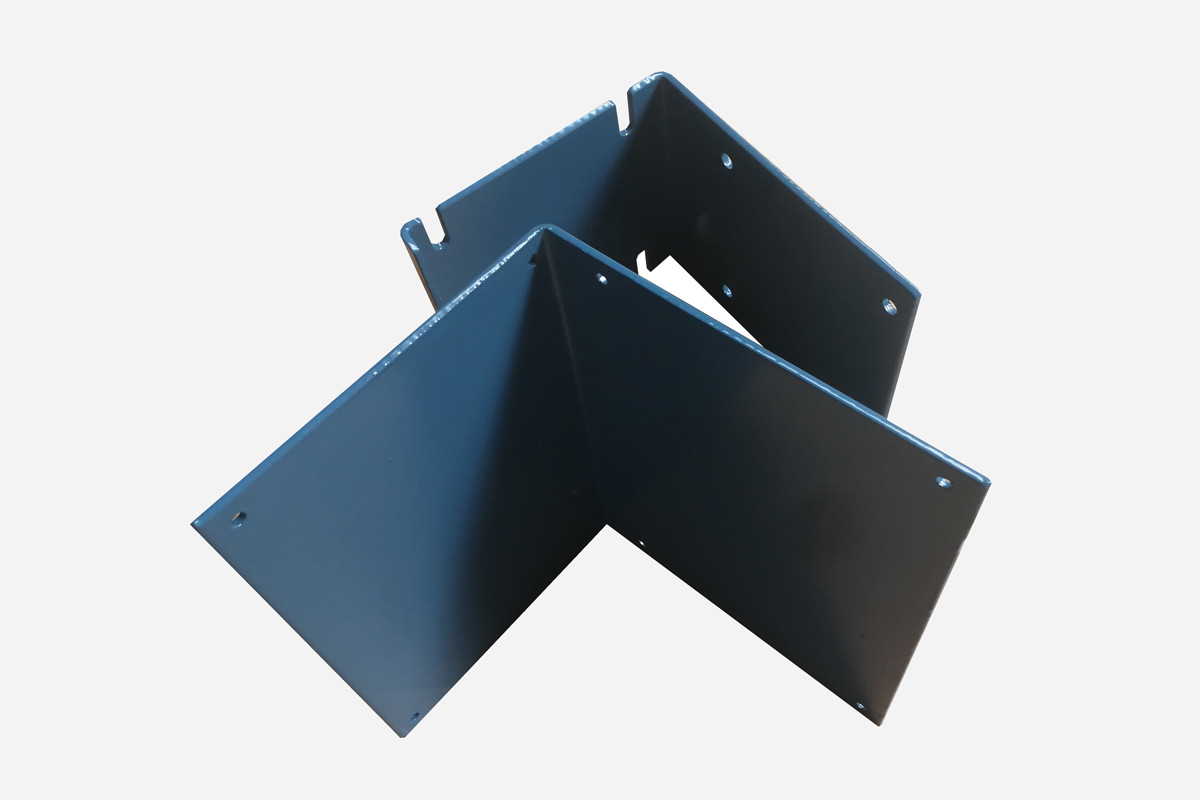

• Optional: “Easy Angles” offset plates
• First-class build quality with CE certificate for UVV inspection
• Manufactured according to ISO 9001
• Powder-coated finish with scratch-resistant surface
• Acoustic warning signal
• Foot entrapment protection
• Vehicle roll-off protection
• Cable break protection and slack cable safety device
• Releasable mechanical safety locks to prevent unintended lowering
• Powerful lifting cylinder beneath the runway for reliable lifting and lowering
• User-friendly control box (IP54 protection rating and 24 V control voltage)
• Powerful aluminium industrial electric motor with IP54 control unit + aluminium hydraulic motor + metal oil tank
• Powerful hydraulic cylinder beneath the runway for reliable lifting and lowering
• Hydraulic pressure relief valve

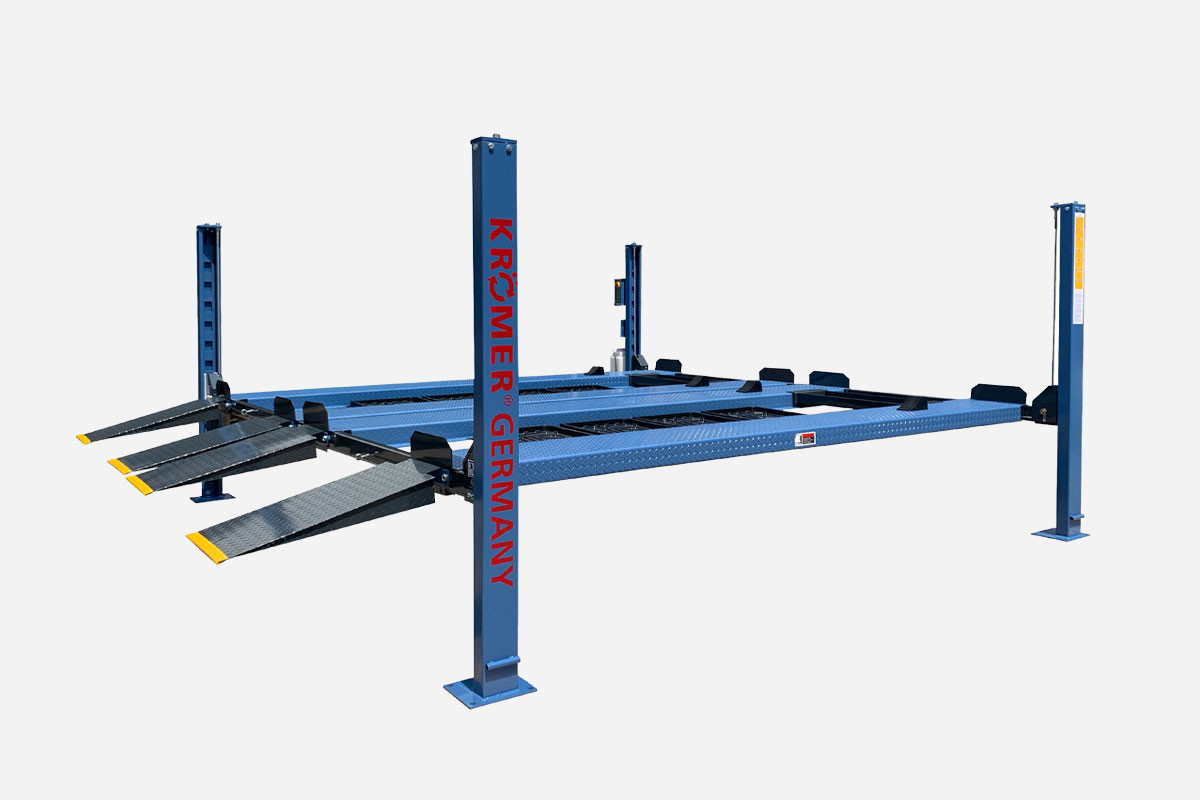

The FP36 is a comparable model to the FP35.

Naturally, this model also comes with the comprehensive Kroemer warranty. This 4-post vehicle lift has been tested and approved in accordance with Annex IV of the Machinery Directive, including type examination, and has therefore been manufactured in accordance with ISO and CE requirements. This provides an excellent basis for the required UVV inspection.

If a component should ever need replacing, we offer a wide range of suitable spare parts in our online shop.

For initial commissioning, hydraulic oil of DIN type HLP 46 is required (12 litres). Before operation, the operating instructions, concrete foundation plan, and operating and maintenance manual must be read carefully.

Electrical work must be carried out by appropriately authorised qualified personnel.

Our customer service team will be happy to advise you before purchase and help you select the right lift for your requirements.

Important note: Private customers must have the lift installed by Kroemer Hebebühnen. Commercial customers should familiarise themselves with the supplied instructions before installation. If self-installation is not possible, the Kroemer Hebebühnen installation service can be booked for an additional charge. Professional installation is also recommended for commercial customers to ensure safe and correct installation.

Not eligible for express shipping

Included in the scope of delivery:

• Kroemer FP36 4-post lift
• 230 V or 400 V electric motor with hydraulic unit
• German operating instructions and inspection logbook for the UVV inspection, available as a download in our FAQs or via the instruction/inspection manual link
• Heavy-duty anchors (12 pieces)

Not included in the scope of delivery:

• Oil – can be ordered separately (filling quantity: 15 litres)
• Vehicle
• Mobile chassis

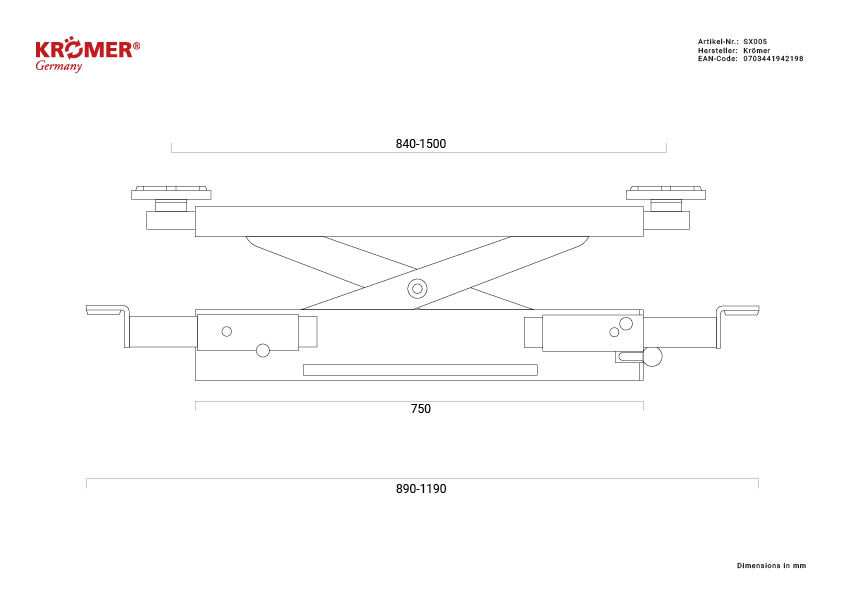

• Axle jack

Below the description, you will find the accessories section with a wide range of products and services for the FP36.

Information regarding unloading

Despite the high-quality paint finish, scratches may occur during transport, quality control and installation of the lift.
