4 Post Lift 3.6t Double Parking Lift Kroemer FP24

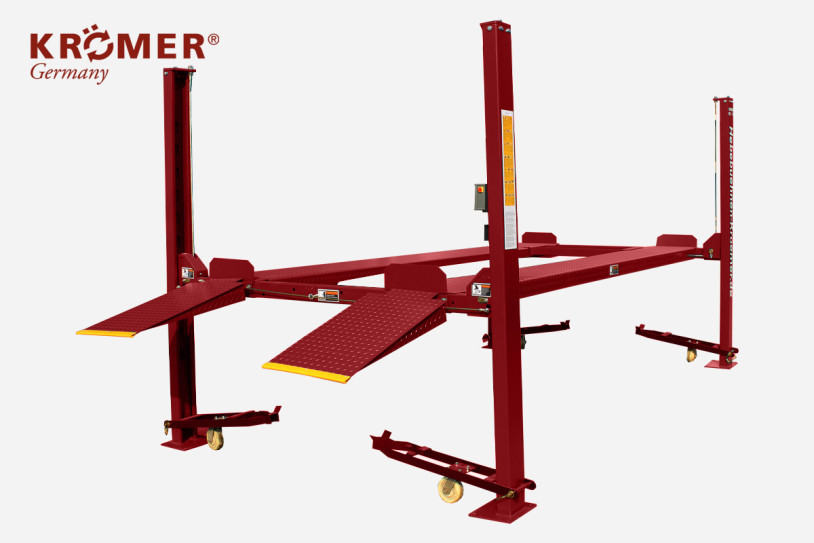

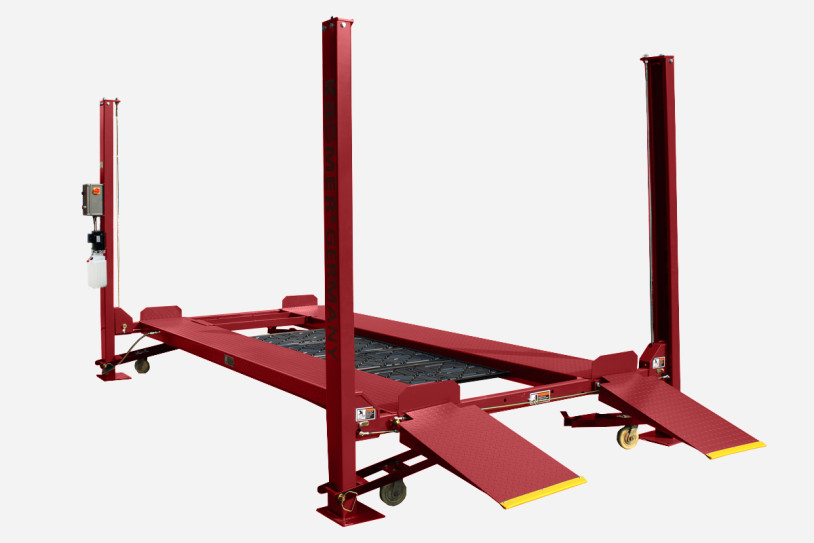

Kroemer FP24 4-Post Vehicle Lift and Parking Lift

• First-class manufacturing quality, with CE certificate for safety inspection

• Manufactured in accordance with ISO 9001

• Audible signal and CE stop during lowering to prevent foot entrapment

• Safety locking system with pneumatically released mechanical safety locks to prevent unintentional lowering of the lift

• Audible warning device and emergency stop switch

• Exceptionally low drive-on height (125 mm)

• Secured clearance height of 1730 mm

• Cable break protection and slack cable protection

• Foot entrapment protection

• Powder-coated finish with scratch-resistant surface

• Overload protection via overload valve

• Convenient control box (IP54 protection rating and 24 V control voltage)

• Hydraulic cylinder beneath the runway for powerful lifting

• Hydraulic overload valve

• Includes removable oil drip trays

• Tightening torque for securing the posts: 120 Nm

IMPORTANT NOTICE: The customer must provide a forklift for unloading.

Particularly in professional and commercial environments, vehicle lifts must meet specific requirements. With the FP24 4-post vehicle lift, Kroemer offers the perfect solution for hydraulic vehicle lifting. Thanks to its impressive lifting capacity of 3,600 kg and own weight of 780 kg, the lift can raise both large and small passenger vehicles.

With a maximum lifting height of 1,790 mm and robust drive-on ramps, the Kroemer FP24 4-post lift is suitable for almost all tyre maintenance tasks.

Optionally available are 4 plastic drip trays and a metal oil collection tray. Kroemer helps ensure that oil and other fluids are collected where they belong.

Our “Kroemer Easy Angles” are also optionally available for this model. These practical offset mounting plates allow the hydraulic motor and control panel to be rotated 90° around the main post. This makes it possible to install several lifts in a smaller area or position the posts close to a wall.

We also offer an optional rolling jacking beam for €599 for the FP24 4-post lift. This makes wheel changes straightforward when using the lift.

Say goodbye to paint scratches and poor workmanship: your new Kroemer 4-post lift features a powder-coated finish. The drive-on ramps are additionally finished in RAL 7016.

Please note that, in accordance with the applicable CE standard, individual platforms may have a height difference of up to 20 mm when unloaded.

Difference compared with the FP25:

The FP24 is equipped with lockable safety catches that must be synchronised accordingly. On the comparable FP25, the safety catches are permanently integrated into the posts, meaning that separate synchronisation is not required. The two models therefore differ primarily in the design and operation of their safety systems.

For initial commissioning, DIN HLP 46 hydraulic oil is required (12 litres). Before operation, the operating instructions, concrete foundation plan, and operating and maintenance manual must be read. Electrical work must only be carried out by appropriately qualified personnel.

An additional hand pump is required to release the lift from the safety lock.

Our customer service advisers will be happy to assist you before purchasing and help you select the right vehicle lift for your needs.
