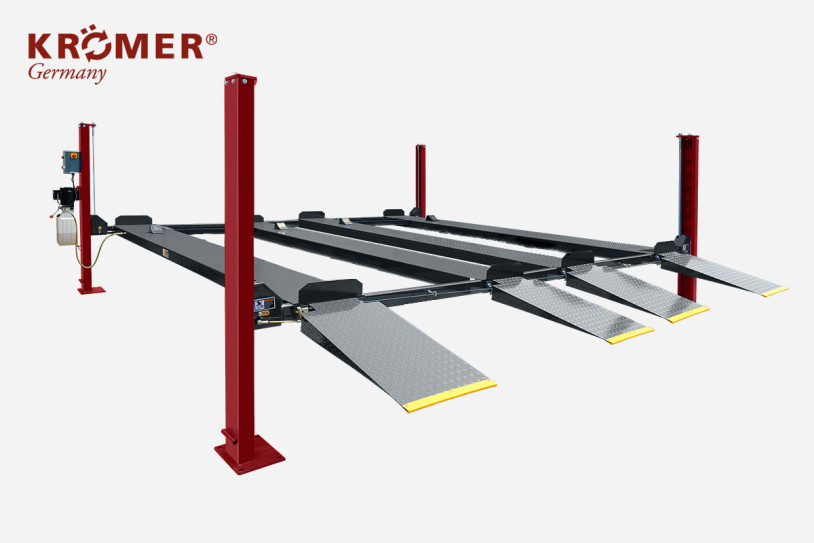

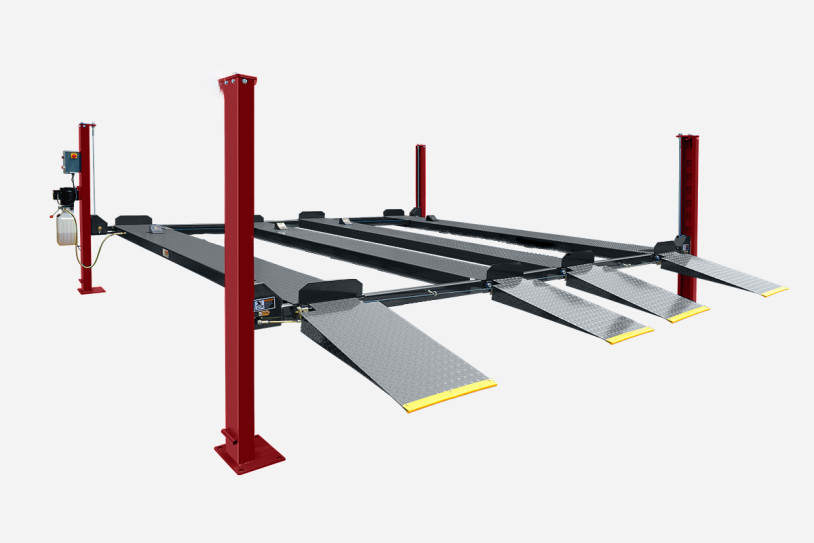

4-Post Lift for Double Parking Kroemer FP37

Kroemer FP37 4-Post Parking Lift – 3,600 kg Lifting Capacity, 2,185 mm Lifting Height and Flexible Parking Solution

• Overall length including drive-on ramps: 5,262 mm
• Runway width: 475 mm
• Powerful 24 V control unit
• Heavy-duty drive-on ramps
• Ideally suited for almost all maintenance work on tyres and lower body components
• Easy to position thanks to the supplied rollers
• First-class build quality with CE certificate for UVV inspection
• Manufactured according to ISO 9001
• Powerful aluminium industrial electric motor with IP54 control unit + aluminium hydraulic motor + metal oil tank
• Powerful hydraulic cylinder
• High-quality, heavy-duty construction
• Foot entrapment protection via CE stop during lowering and acoustic warning signal
• Overload protection via pressure relief valve

--- IMPORTANT NOTE --- A forklift must be provided by the customer for unloading.

With a maximum lifting height of 2.18 m, a powerful 24 V control unit and heavy-duty drive-on ramps, the Kroemer 4-post lift is ideally suited for a wide range of maintenance work on tyres and lower vehicle body components.

No space for assembly? No problem! Simply assemble your Kroemer 4-post lift wherever you have sufficient space in your garage. Thanks to the supplied rollers, the lift can be moved into the required position after assembly. Once the ideal location has been found, the FP37 4-post lift must be securely anchored to the floor.

This floor anchoring ensures safety and stability when lifting vehicles. The heavy-duty anchors included in the scope of delivery are specifically intended for this purpose.

The FP37 is also a special version based on the FP41.

Optionally available are 4 plastic drip trays PLUS one metal oil tray, helping to keep the working area clean.

For this model, our “Kroemer Easy Angles” are also available as an option for €49. These practical offset plates allow the hydraulic motor and control panel to be rotated by 90° around the main column. This makes it possible to position several lifts in a smaller area or install the columns closer to a wall.

Naturally, this model also comes with the comprehensive Kroemer warranty. The FP37 4-post vehicle lift has been tested and approved in accordance with Annex IV of the Machinery Directive, including type examination, and has been manufactured in accordance with ISO and CE requirements. If a component ever needs replacing, you will find a wide range of suitable spare parts in our online shop.

For initial commissioning, hydraulic oil of DIN type HLP 46 is required (12 litres). Before operation, the operating instructions, concrete foundation plan, and operating and maintenance manual must be read carefully.

Electrical work must be carried out by appropriately authorised qualified personnel.

Our customer service team will be happy to advise you before purchase and help you select the right lift for your requirements.

Not eligible for express shipping

Included in delivery:

• 4-post lift Kroemer FP37
• 230V or 400V electric motor hydraulic unit
• German operating instructions and inspection logbook for UVV inspection available as a download in our FAQs or here: Instructions and inspection logbook
• Heavy-duty anchors (12 pieces)
• Invoice with VAT shown.

Not included in delivery:

• Oil - can optionally be ordered (filling quantity: 15 liters)
• Vehicle
• Mobile kit
• Jack beam

Below the description you will find the accessories section with a large selection of products and services for the FP37.

Information regarding unloading

Despite the high-quality paint finish, scratches may occur on the lift due to logistics, quality control, and assembly.
