4 Post Double Parking Lift "Hamburg" Double parking

Special Features of "Hamburg"

• 1A processing quality, with CE certificate for UVV acceptance

• Production according to ISO 9001

• Powder-coated finish, with a scratch-resistant surface

• Acoustic warning device

• Foot protection

• Vehicle roll-off protection

• Rope breakage protection and slack rope

• Unlockable mechanical safety catches against unintentional lowering

• Powerful power cylinder under the runway for powerful lifting and lowering

• Convenient control box (protection class IP54 and 24 V control voltage)

• Powerful aluminum industrial electric motor with IP 54 control unit + aluminum hydraulic motor + metal oil tank

• Powerful hydraulic cylinder under the runway ensures powerful lifting and lowering

• Hydraulic relief valve

--- IMPORTANT NOTICE ---  When unloading, the customer must have a forklift available

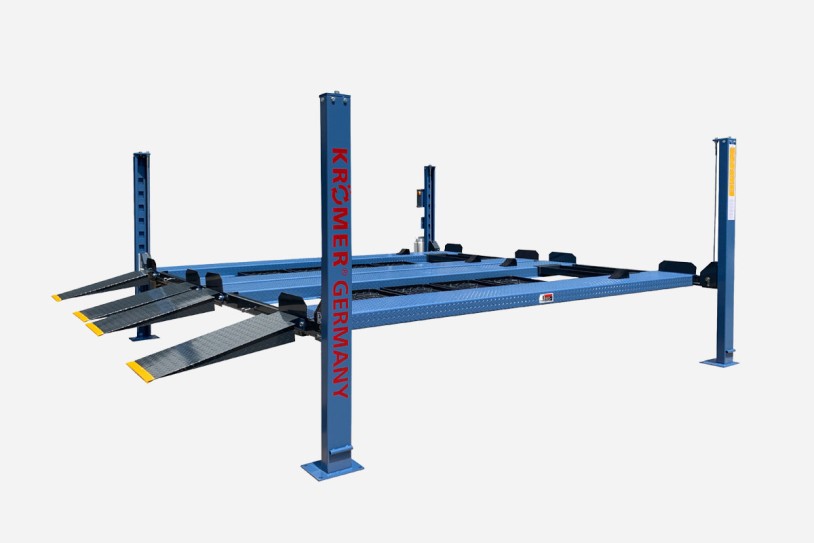

The 4-post lift "Hamburg" FP35 has an unbelievable load capacity of 3,600 kg. The FP35 post lift has a total weight of 1,380 kg. Thus, the FP35 "Hamburg" can smoothly lift cars and even caravans.

The "Hamburg" FP35 4-post lift should urgently be fixed to the ground to ensure stability and safety when lifting your vehicles. The included heavy-duty anchors are used for the successful attachment of the lift. The roll-off protection ensures safe and stable working with the 4-post lift.

Only the highest quality for our customers! The Krömer 4-post car lift impresses with its high-precision production using laser flame cutting and robotic welding. Our 4 pillars are also characterized by durable technology and robust components (almost maintenance-free)! No more paint scratches and poor processing. Your new 4-post lift from Krömer is powder-coated.

Optionally available are 4 plastic drip pans and a metal oil pan. Krömer ensures that nothing goes wrong when you work in the future.

In addition, the "Easy Angles" can be ordered for €69. With the help of these practical offset plates, the hydraulic motor and control panel can be rotated at a 90° angle around the main column. This allows you to accommodate several stages in less space or mount the columns close to the wall.

The ramps of the stage are painted in RAL 7016.

For the first start-up of the lift, hydraulic oil must be filled in (at least 12 liters required, take a look at the operating instructions).

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 4-post car lift "Hamburg" - FP35 has been tested according to the Machinery Directive in accordance with Appendix IV with a type examination and was therefore manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products! Sadly, this is not the case for the most of our competition.

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required). Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel. The assembly must be carried out by a specialist with several years of experience in the field of lifting platforms.

* additional hand pump is required to release the lift from the safety catch

Krömer 4-post lift FP35
Electric motor 230V or 400V hydraulic unit
English operating instructions and test book for the APR acceptance in DOWNLOADS
Heavy-duty anchor (12 pieces)

Not included in delivery:
Oil (capacity: 15 liters) - but can be bought separately
Power cable + plug
Vehicle
