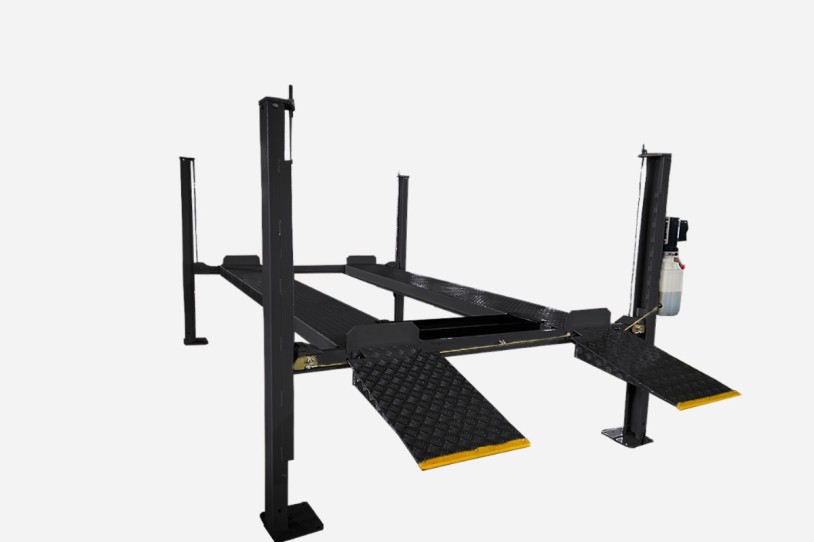

4-post parking lift Kroemer FP25

Kroemer FP25 4-Post Parking Lift – 3,600 kg Lifting Capacity, 1,845 mm Lifting Height and Mobile Chassis

• First-class build quality with CE certificate for UVV inspection
• Manufactured according to ISO 9001
• Acoustic warning signal and CE stop during lowering as foot entrapment protection
• Safety locking system with pneumatically releasable mechanical safety locks to prevent unintended lowering of the lift
• Acoustic warning device and emergency stop switch
• Exceptionally low drive-over height: 125 mm
• Safe clearance height underneath: 1,730 mm
• Cable break protection and slack cable safety device
• Foot entrapment protection
• Powder-coated finish with scratch-resistant surface
• Overload protection via overload valve
• User-friendly control box (IP54 protection rating and 24 V control voltage)
• Hydraulic cylinder beneath the runway for powerful lifting
• Hydraulic overload valve
• Removable oil drip trays included
• Torque for securing the columns: 120 Nm

IMPORTANT NOTE: The customer must provide a forklift for unloading.

Especially in commercial and professional environments, vehicle lifts must meet specific requirements. With the FP25 4-post lift, Kroemer offers a reliable solution for hydraulic vehicle lifting. With an impressive lifting capacity of 3,600 kg and a net weight of 780 kg, the lift is suitable for lifting both large and small passenger vehicles.

With a maximum lifting height of 1.90 m and heavy-duty drive-on ramps, the FP25 4-post lift is a practical solution for a wide range of tyre-related maintenance work.

Optionally available are 4 plastic drip trays and one metal oil tray, helping to keep the working area clean.

The Kroemer Easy Angles are also optionally available for this model. These practical offset plates allow the hydraulic motor and control panel to be rotated by 90° around the main column. This makes it possible to position several lifts in a smaller area or install the columns closer to a wall.

Say goodbye to paint scratches and poor finishing: your new Kroemer 4-post lift features a powder-coated finish. The drive-on ramps are additionally painted in RAL 7016.

Please note that, in accordance with the applicable CE standard, there may be a height difference of up to 20 mm between the individual platforms when unloaded.

Difference compared with the FP24:
The FP25 features safety locks permanently integrated into the columns, meaning that separate synchronization of the safety locks is not required. On the comparable FP24, the safety locks are lockable and must therefore be adjusted and synchronized with one another. This makes the FP25 safety system particularly straightforward to operate.

Important information regarding the installation site:
The FP25 must be installed on a level, load-bearing surface without unevenness. Uneven flooring can adversely affect the correct alignment and operation of the lift.

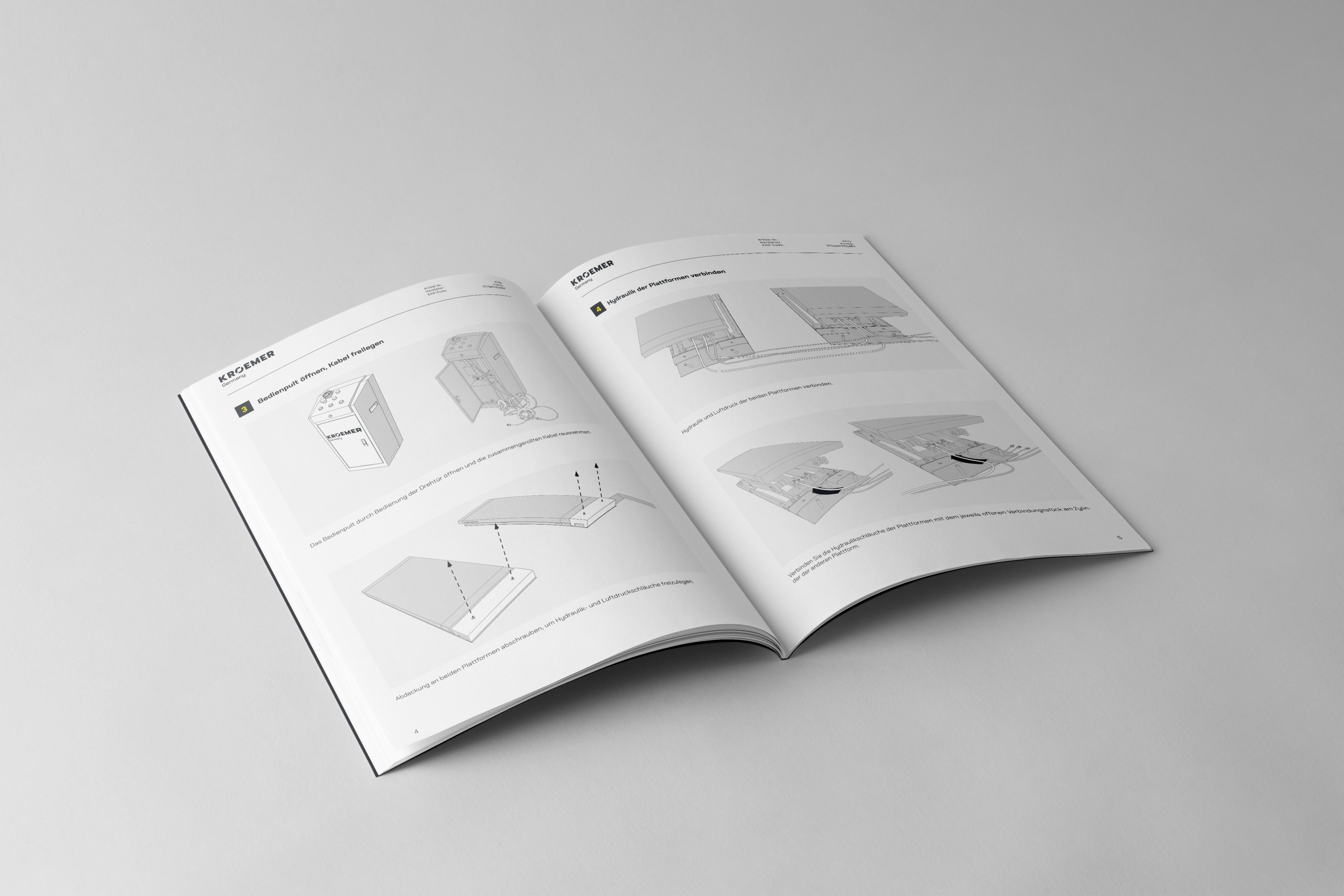

For initial commissioning, hydraulic oil of DIN type HLP 46 is required (12 litres). Before operation, the operating instructions, concrete foundation plan, and operating and maintenance manual must be read carefully. Electrical work must be carried out by appropriately authorised qualified personnel.

Our customer service team will be happy to advise you before purchase and help you select the right lift for your requirements.
