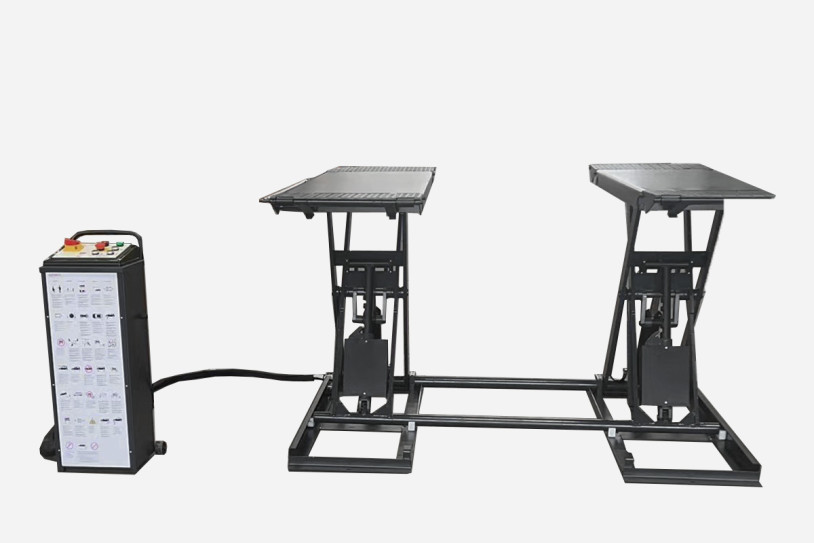

Mobile Mid-Rise Scissor Lift Kroemer X60

Please note the maximum lifting height (+300 mm) before purchasing. You should also take your vehicle height into account. Kroemer's Handelsgesellschaft mbH accepts no liability for damage to the vehicle roof caused by operating errors or technical defects in the scissor lift.

• 1A workmanship with CE certificate for UVV approval
• Production in accordance with ISO 9001
• Double pipe system for symmetrical distribution of system pressure
• Low space requirement and absolute door clearance
• Powder-coated paint finish with scratch-resistant surface treatment
• Powerful electric motor in hydraulic oil with IP 54 control unit
  Lowering safety device
• Low-wear bearings on the scissor joints
• Mechanical synchronisation control
• Lockable/securable drive-on ramps, load capacity up to 2 tonnes per ramp (4x drive-on ramps)
• Two powerful, hard chrome-plated hydraulic cylinders
• Foot pinch protection
• Electronic lift limitation via limit switch
• Long-term spare parts supply guaranteed
• Multiple safety features including hose rupture protection, overload valve, mechanical safety latches

The X60 scissor lift is specially designed to meet the requirements of tyre and bodywork repairs. However, it is also the perfect workstation for servicing and interior work in the workshop. With a manageable investment, you can quickly set up an additional universal workstation – without any foundation work.

Thanks to its flat design, the lift can be stored in a space-saving manner. With the optional mobile chassis (mobile kit), you can easily move your lifting platform around the garage and rotate it 360° on the spot. No compressed air—and therefore no compressor—is required to operate the safety locks, as the X60 locks automatically.

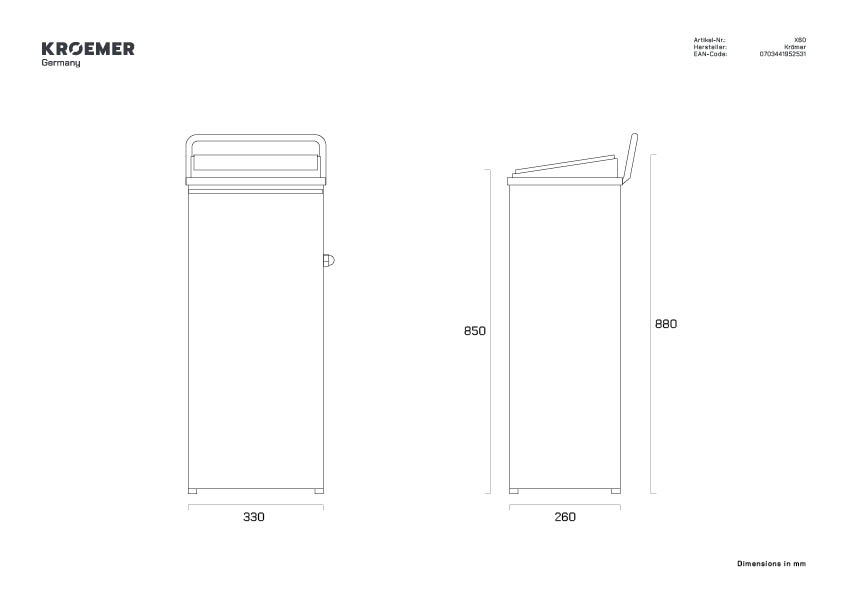

The powerful electric motor in the hydraulic oil ensures quiet operation, making it gentle on the ears and nerves during daily use. Another highlight of the control panel is the standard industrial control system. The electrical system of the Kroemer control panel consists of only three main components: microcomputer control, circuit board, and motor contactor. Lifting vans or similar vehicles is only possible with the 400-volt version.

For initial commissioning, you will require 5 litres of HLP46 hydraulic oil (refer to the operating instructions).

Technical specifications:

• Load capacity: 4,100 kg
• Clearance height: 105 mm
• Motor power: 2.2 kW
• Electrical connection: 230 or 400 V / 50 Hz, 16 A CEE

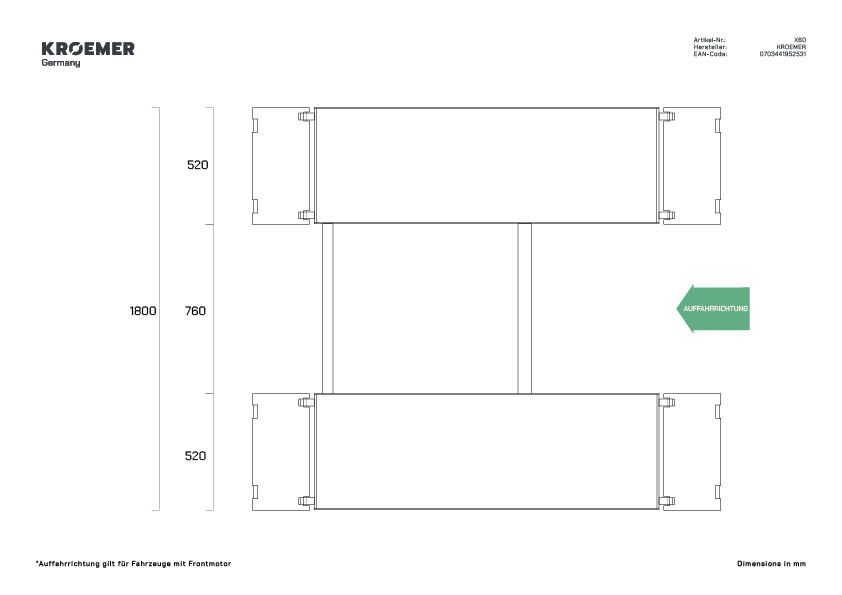

• Column spacing: 760 mm
• Main voltage: Dead man's switch (24 V - low voltage)
• Weight: 600 kg
• Pressure capacity: 16 MPa
• Lifting time: < 50 seconds
