Above-ground double scissor lift Kroemer XX52

Name: Above-ground double scissor lift Kroemer XX52
Brand: Hebebühnen Kroemer
SKU: XX52
Price: 3.49900 EUR
Availability: InStock

In stock

£3,599.00

Product Options:

Power supply

Delivery time:
Shipping cost:

New: no compressed air required
Acoustic warning signal (foot protection)
Integrated manoeuvring aid
Lifting capacity (static): 3,000 kg
Lifting height: 1,900 mm (incl. rubber blocks)
Low-noise engagement of the safety locks
No additional upward movement when lowering

Description

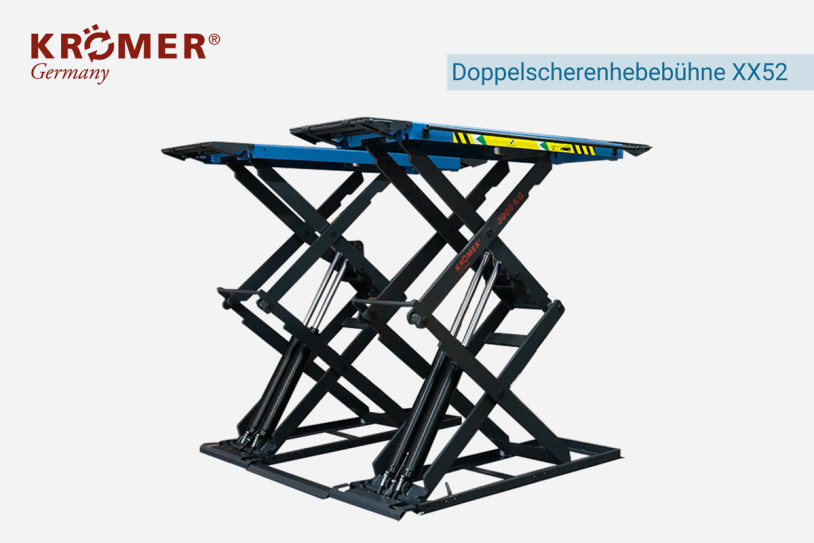

Kroemer XX52 Double Scissor Lift – 4,000 kg Lifting Capacity for Professional Workshops

Fully automatic lifting and lowering at the touch of a button
First-class build quality with CE certification for UVV inspection
Manufactured in accordance with ISO 9001
Low space requirement
Powder-coated finish with a more scratch-resistant surface treatment
Powerful electric motor in the hydraulic oil system
With IP54 control unit
Two powerful, hard-chrome-plated hydraulic cylinders
Foot entrapment protection
Completely unobstructed door access
Long-term spare parts availability
Multiple safety systems including hose rupture protection and overload valve

The Kroemer XX52 double scissor lift offers a lifting capacity of up to 4,000 kg. The maximum lifting height is 185 cm, making work on vehicles easier and more comfortable.

For maintenance and repair work on tyres and lower body components, a Kroemer scissor lift is an ideal piece of equipment for professional automotive workshops. Thanks to its robust construction and extendable drive-on ramps, the XX52 double scissor lift offers a wide range of applications and can also be used for lifting SUVs and light commercial vehicles.

The redundant hydraulic system consists of a total of 4 hydraulic cylinders, ensuring safe and reliable lifting of the platforms. The hydraulic system of the double scissor lift also enables the safety locks to engage quickly without the lift having to rise briefly again before lowering.

The control unit of the XX52 has been designed to be more compact, allowing the double scissor lift and its control unit to be used even where space is limited.

Ideal working conditions for professional automotive workshops.

Technical Data

SKU	XX52
EAN-Code	0757284116100
Delivery Time	From mid-October 2026
Shipping costs	299 €
Suitable for express delivery	No
Installation dimensions: diameter Ø	30-40
Motor power	2,2 kW
Lifting height max.	1.850 mm
Carrying Capacity	4.000 kg
Clearance height	110 mm
Weight	787
Press capacity	16 MPa
Geräuschepegel	≤ 60 dB(A)
Höhe	1.054

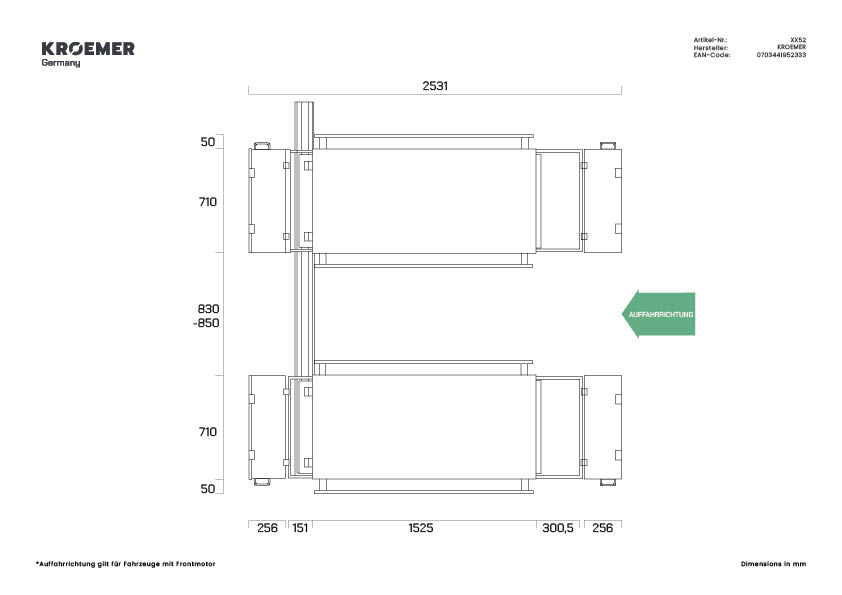

XX52 Technische Zeichnung - Draufsicht (Auffahrrichtung)

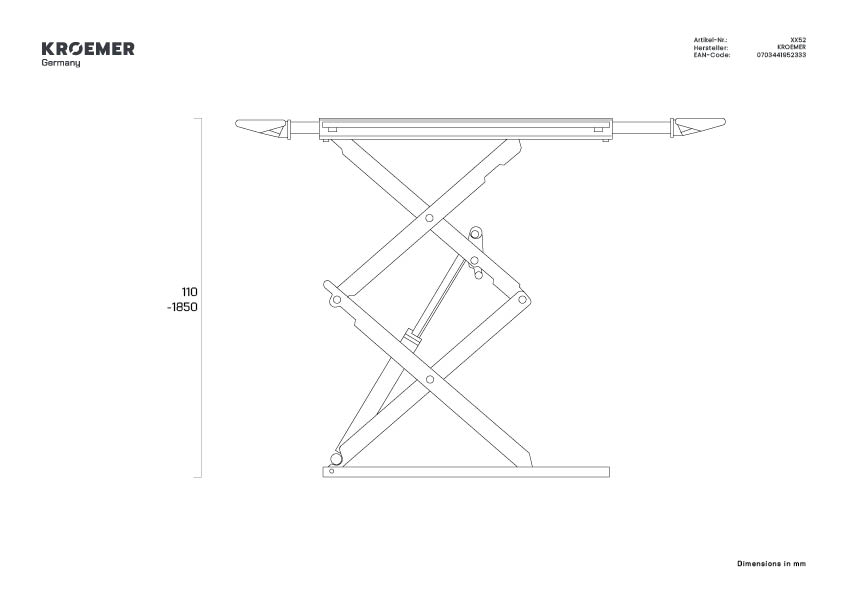

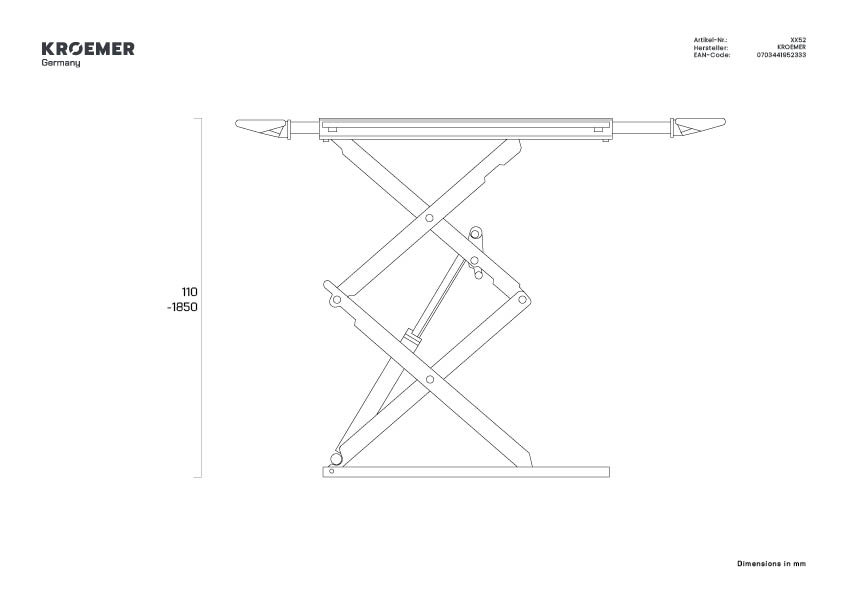

XX52 Technische Zeichnung - Seitenansicht oben

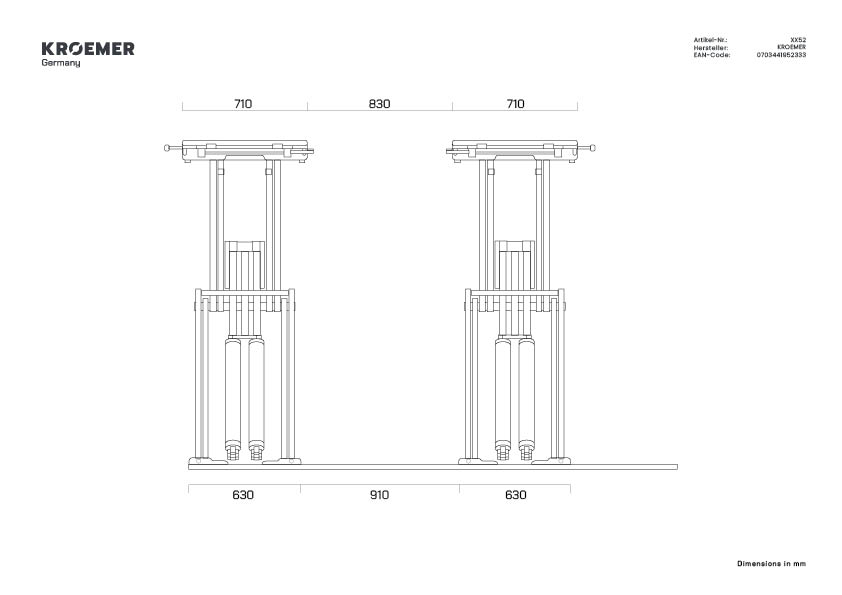

Technische Zeichnung XX52 - Frontansicht oben

Downloads

1. Technische Zeichnung XX52
2. Schaltplan XX52

Delivery Scope

Not eligible for express shipping

Scope of delivery

Kroemer XX52 above-ground double scissor vehicle lift
230 V or 400 V electric motor
Installation frames (2 pieces)
German operating instructions and inspection logbook for the UVV inspection available as a download in our FAQs
Invoice showing VAT separately

Not included in the scope of delivery:

Hydraulic oil – can be ordered separately from the online shop (filling quantity: 17.5 litres)
Vehicle
CE plug – can be ordered separately from the online shop

Below the product description, you will find the accessories section with a wide range of products and services for the XX52.

Information regarding unloading

The metal frames attached around the lift serve as protection and are part of the packaging.

Despite the high-quality paint finish, scratches may occur during transport, quality control and installation of the lift.

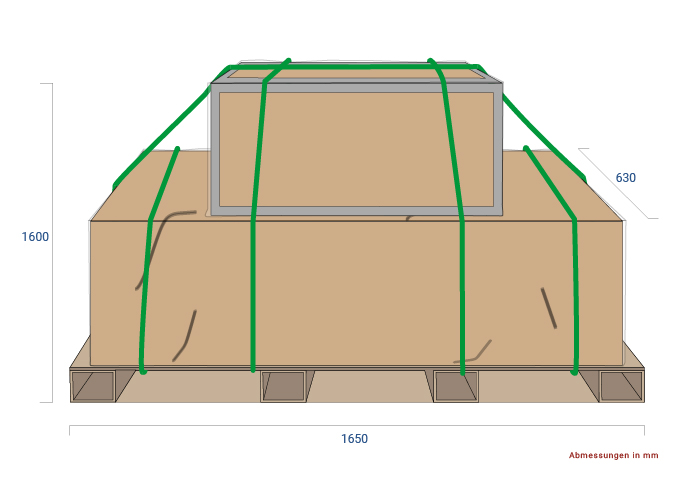

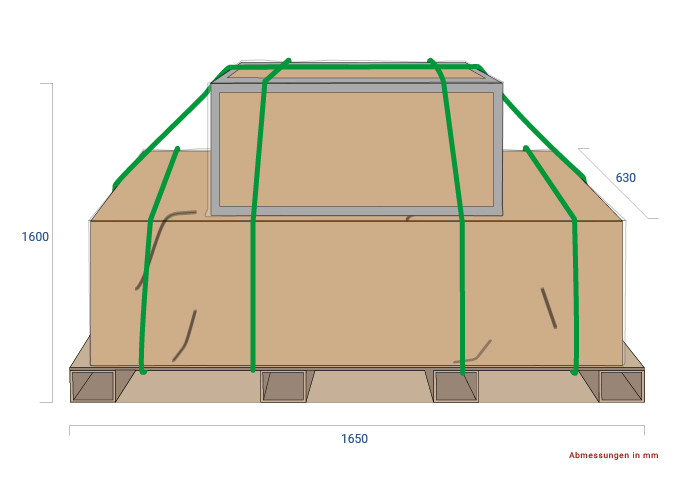

Verpackungsmaße Scherenhebebühne XX52
