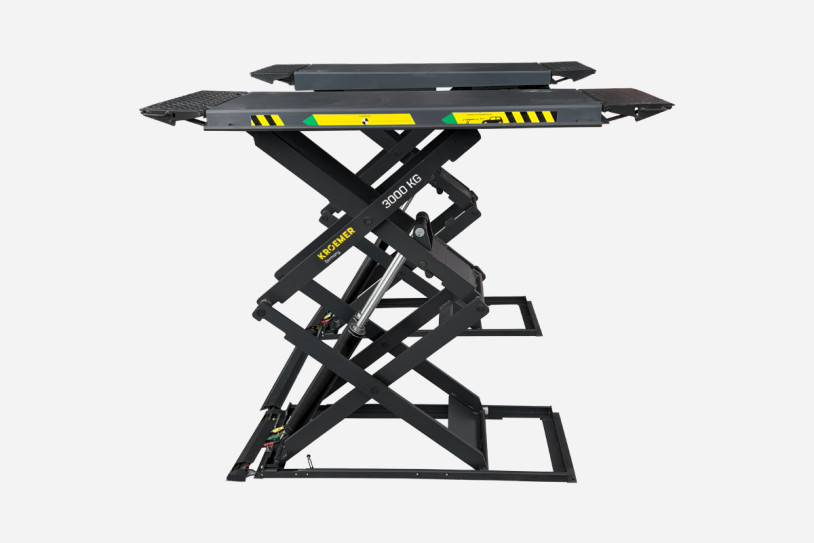

Galvanised Full-rise scissor lift - KROEMER XX54
In stock
- Delivery time:
- 5-10 Business days
- Shipping cost:
- 599 £
-
Redundant hydraulic system
-
Extendable ramps
-
Platforms, including ramps and base plates, are galvanised
-

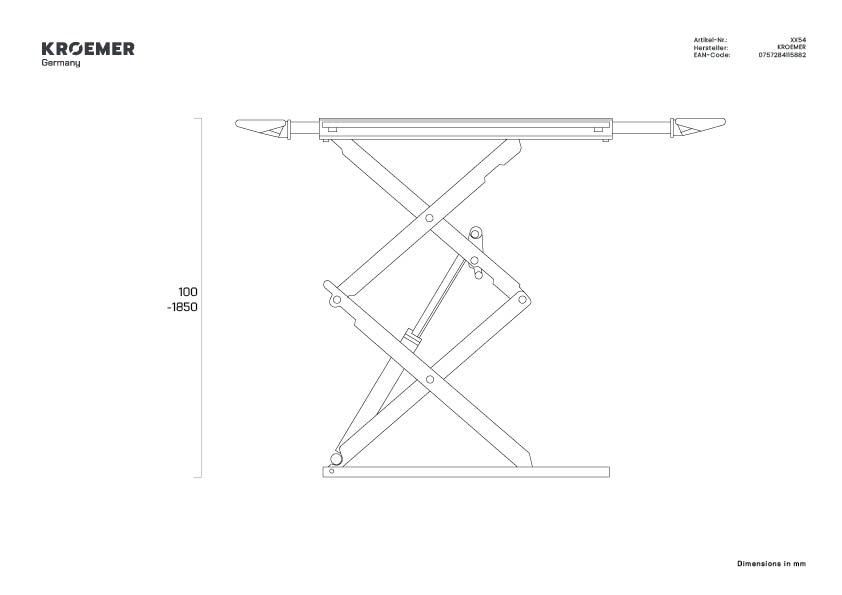

Lifting height: 1,850 mm
-
Platform length: 1,525 mm
-
Platform width: 710 mm
-
Load capacity: 4,000 kg
-
Clearance height: 110 mm
Description
- 1A build quality with CE certificate for UVV approval
- Production in accordance with ISO 9001
- Double-walled compressed air cylinder
- Low-noise operation thanks to modern motor
- DUPONT® paint coating
- Powerful aluminium electric motor with IP 54 control unit + aluminium hydraulic motor + metal oil tank
- Automatic lifting and lowering
- Foot pinch protection
- Absolute door clearance
- Multiple safety features including hose rupture protection and overload valve
With a maximum lift height of 1850 mm, a stable load capacity of up to 4 tonnes, a redundant hydraulic system consisting of 4 hydraulic cylinders and a simple design, the XX54 Overfloor Full-rise scissor lift can be used for almost all maintenance work on tyres and lower body parts. The hydraulic system, consisting of double cylinders, enables quick lifting and locking. This means that no compressor is required for unlocking and locking.

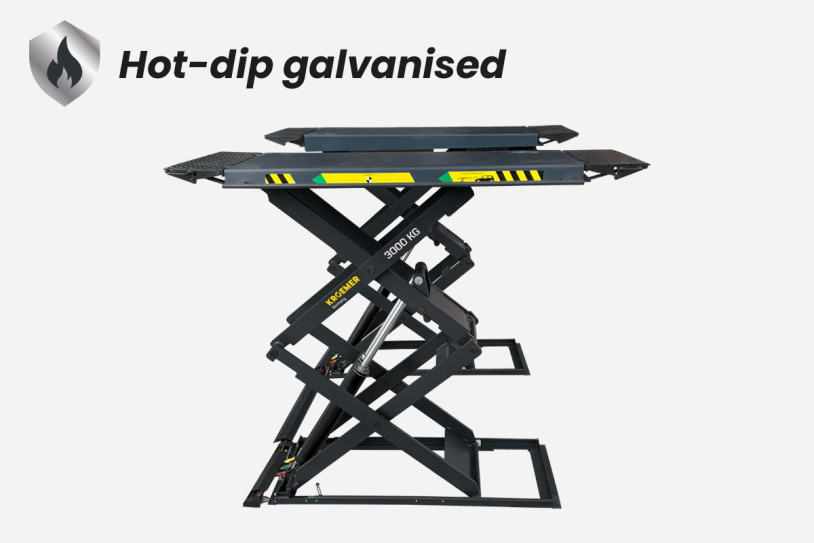

Automatic lifts are subject to special requirements, particularly in commercial work areas such as car workshops or tyre services. The Kroemer team has recognised this and offers you the specially galvanised professional scissor lift. The platforms, drive-on ramps and base plates of the XX54 are completely galvanised. This protects the XX54 Full-rise scissor lift from moisture and allows it to be used outside the garage or workshop.Â

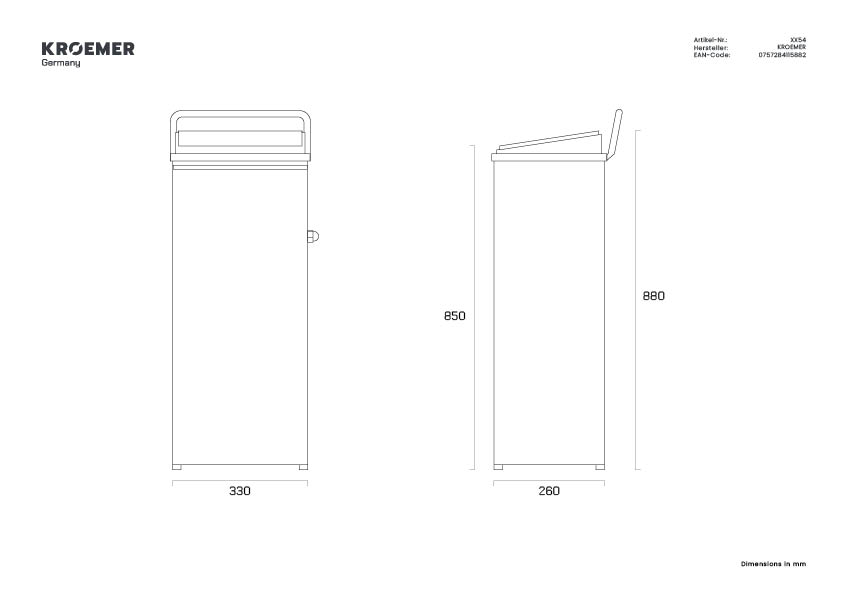

The control panel contains a main switch, emergency stop switch and buttons for raising and lowering. The control panel also features clear instructions for operating the XX54 galvanised Full-rise scissor lift.
Â
Â
Technical Data
Technical Data
| SKU | XX54 |
|---|---|
| EAN-Code | 757.284.115.882 |
| Delivery Time | 5-10 Business days |
| Shipping costs | 599 £ |
| colour | anthracite |
| Express Shipping Available | No |
| Lifting height max. | 1.850 mm |
| Carrying Capacity | 4.000 kg |
| Clearance height | 110 mm |
| Weight | 1060 kg |
| Druckleistung | 16 MPa |
| Geräuschepegel | ≤ 60 dB(A) |
Downloads
Delivery Scope
Delivery Scope
Not Eligible for Express Shipping
Scope of Delivery
- Surface-mounted double scissor car lift "Leipzig Galvanized" XX54
- 230V or 400V electric motor
- Installation frames (2 pieces)
- German operating manual and inspection logbook for UVV inspection available as a download in our FAQs
- Invoice with VAT shown separately
Not Included in Delivery:
- Hydraulic oil – can be ordered optionally in the online shop (required quantity: 20 liters)
- Vehicle
- Air compressor – 8–10 bar required
- CEE plug – can be ordered optionally in the online shop
Below the description you will find the accessories section with a wide range of products and services for the XX54.
Unloading Information
The metal frames attached around the lift serve as protection and are part of the packaging.
Despite the high-quality paint finish, scratches may occur on the lift during logistics, quality control, and assembly.
