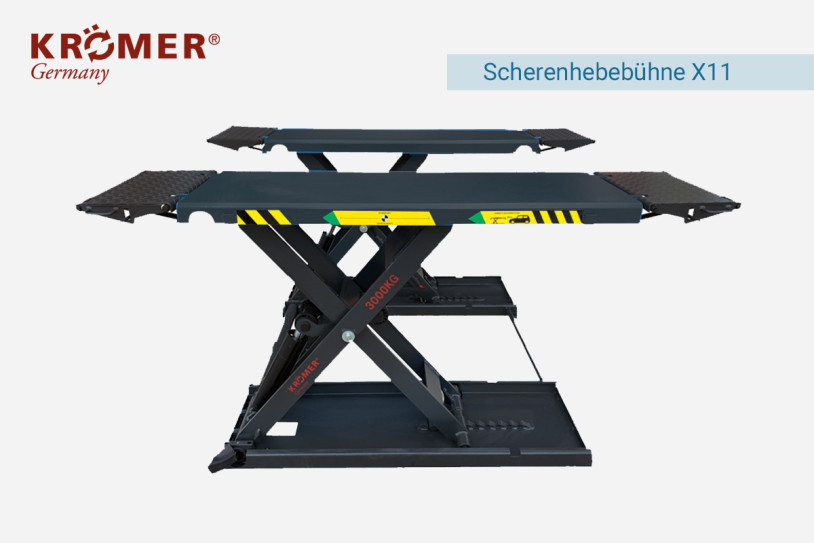

Hydraulic Mobile Scissor Lift – Kroemer X11

Important notice before purchase: Maximum lifting height is +300 mm. Please ensure your vehicle height is compatible. Kroemer Handelsgesellschaft mbH accepts no liability for roof damage caused by user error or mechanical faults in the hydraulic scissor lift.

• Compact design with low space requirement
• No travelling connecting rod for smooth operation
• No compressed air or compressor needed – hydraulic power only
• Fully automatic lifting and lowering with push-button control
• Adjustable ramp flaps for easy vehicle access
• Quiet, low-noise operation thanks to limit switch and spring suspension
• High-quality craftsmanship with CE certification for UVV safety approval
• Manufactured under ISO 9001 quality standards
• Dual-line hydraulic system for even pressure distribution
• Maximum lifting height: 1000 mm
• Minimal floor installation height of just 15 mm
• Automatic safety system unlocking
• Self-engaging safety latches for added protection
• Durable powder-coated finish with scratch-resistant surface
• Powerful electric motor driving hydraulic oil system with IP54-rated control unit
• Safety lowering device included
• Long-lasting, low-friction bearings on scissor joints
• Mechanical synchronisation ensures smooth lift operation
• Lockable and secure access ramps, each supporting up to 1.6 tonnes (four ramps total)
• Two robust, hard chrome-plated hydraulic cylinders for reliable lifting power
• Built-in foot protection for user safety
• Electronic lifting limit controlled via limit switch
• Unobstructed door clearance—no columns to get in the way
• Guaranteed long-term spare parts availability
• Comprehensive safety features including hose rupture protection, overload valve, and mechanical safety catches

The Kroemer X11 scissor lift requires no compressor! It’s the perfect entry-level lift for private use in your garage. This means you can easily change your own oil and tyres! With a maximum load capacity of 3 tonnes, it’s built to handle most vehicles.

Thousands of hobbyists already use this type of lift in their garages. Thanks to adjustable mounting platforms, almost all vehicles*** weighing up to 3 tonnes can be easily lifted by the sills. The lift comes complete with our mobile power unit and control panel included!

Its flat design allows for space-saving storage. Plus, with the optional mobile chassis (mobile kit), you can effortlessly move your lifting platform around your garage.

The practical deflection aid on our scissor lifts lets you lift vehicles up to 3 tonnes directly from the zero position. It also cushions the platforms — no more loud crashing when lowering the table!

Thanks to the especially robust 8 mm thick drive-on platforms, this lift can accommodate almost any vehicle. The scissor lift features a solidly connected, non-travelling connecting rod, which can also be removed for floor installation (workshop pit).

Two limit switches are installed for enhanced safety: the upper switch acts as overpressure protection to prevent structural damage, while the lower limit switch activates a warning siren (CE Stop) during the last three seconds of lowering, ensuring a low-noise working environment. Another notable feature is the impressively low clearance height of just 105 mm.

At Kroemer, our hard chrome-plated hydraulic cylinders are manufactured to the highest standards, resulting in greater reliability and reduced maintenance needs. Should a fault ever occur, we always have the right spare part available for you—simply order directly from our shop.

The Kroemer X11 scissor lift has been tested and approved in accordance with the Machinery Directive, Annex IV, including type examination. It is therefore equipped with CE certification from one of the leading testing agencies specialising exclusively in lifting platforms.

Beyond the usual CE requirements, both the platform and the control panel were individually tested for functionality before sale. We have simulated 15,000 lifting cycles on this model at the factory to guarantee maximum safety for you. Additionally, our scissor lift undergoes complete electronic and technical checks to ensure full compliance with the latest legal requirements and current guidelines.

Note: The X10 and X11 models are identical in construction and differ only in colour.
