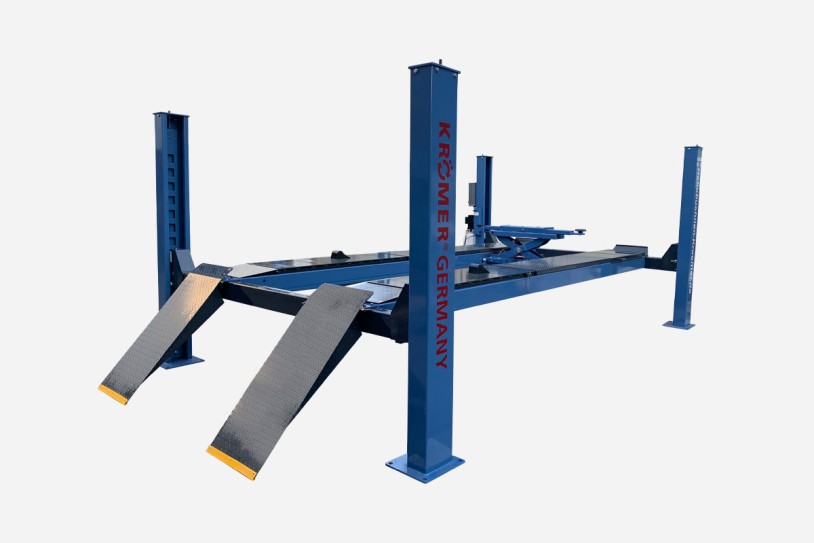

Profi 4 Post Vehicle lift 6.3t - "Warsaw" Wheel alignment car lift

Special Features of "Warsaw" FP46

• 1A processing quality, with CE certificate for APR acceptance

• Production according to ISO 9001

• Maximum lifting height 1850 mm

• flat ride height (241 mm)

• Ramps (L/W): 5420 mm / 508 mm

• Total length with ramps: 6430 mm

• Signal tone and CE-Stop when lowering to prevent crushing in the foot area (foot trapping protection)

• Powder-coated finish, with a scratch-resistant surface

• Rope breakage protection and slack rope

• Mechanical safety catches

• Powerful hydraulic cylinder under the driveway promises powerful lifting

• Hydraulic overload valve

• 34 volt control panel

--- Important Notice ---  During the delivery of the lift, customer must possess a forklift

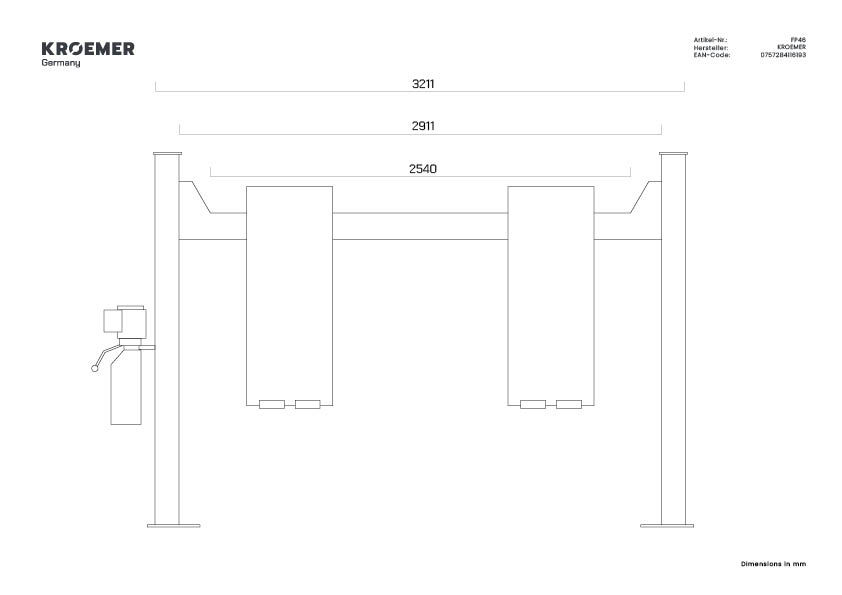

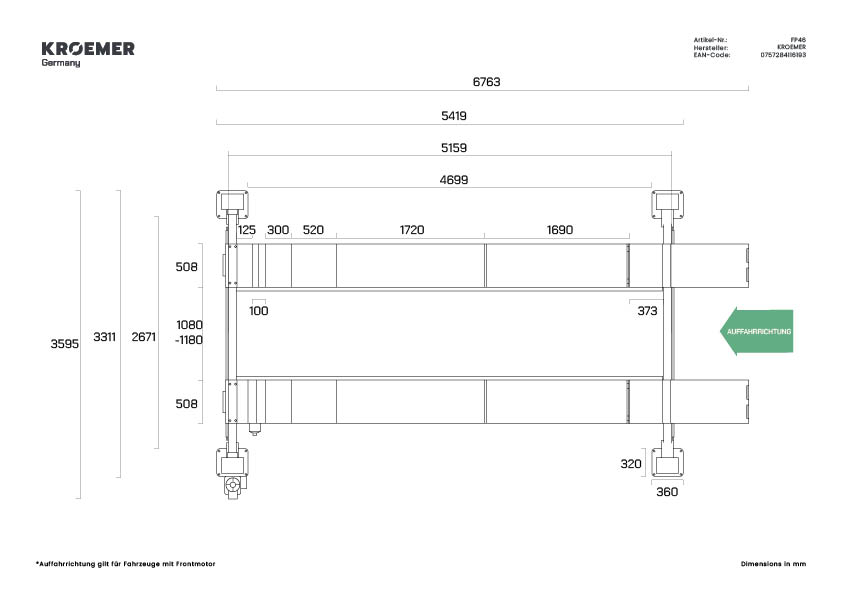

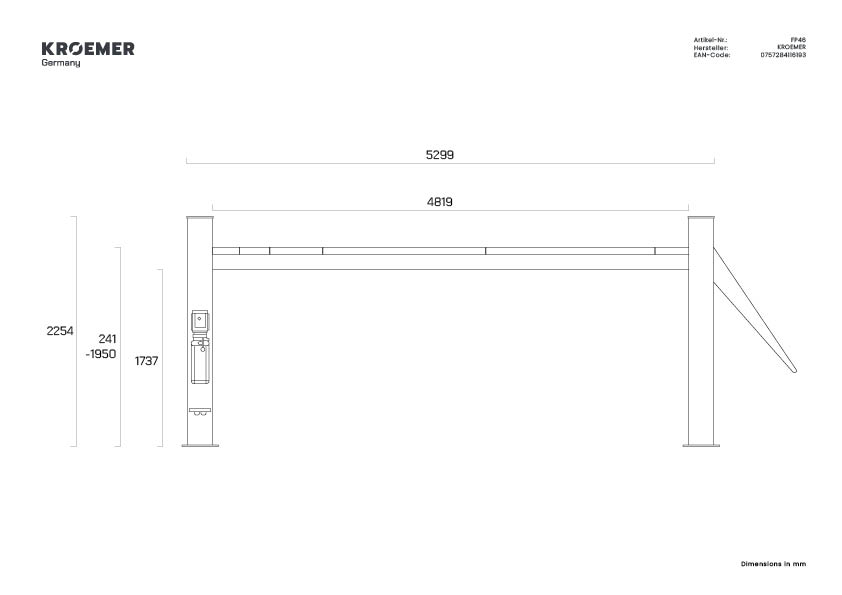

The FP45 "Warsaw" receiving platform has a total weight of 1,680 kg and thus a stable load capacity of up to 6,300 kg. As a result, Krömer provides you with the "Warsaw" 4-post lift, the perfect companion for hydraulically lifting motor vehicles. This 4 post lift allows you to lift small trucks and caravans without any problems (see dimensions and graphic).

This column lift is ideal for raising and lowering vehicles with a long wheelbase (platform length: 5.1m). So even your largest cars should have space on the rails and be able to be lifted! Access to the underbody of your vehicle is excellent thanks to the movable rails! With the heavy-duty drive-on ramps, the 4-post lift can be used for servicing tires and lower body parts.

Krömer only offers the highest quality for the customer. Because the FP46 receiving platform is manufactured with high-precision manufacturing using laser flame cutting and robotic welding.

Due to the built-in recesses for rotating plates at the front and the already built-in swing plates at the rear, the Krömer 4 column is ideally suited for wheel alignment. FP46 "Hof" can also be used fot the installation of the car lamps due to the precisely levelable perforated system of the rails for aligning and loading the load. This guarantees high functionality!

Since the 4-post lift FP46 has a load capacity of 6,300 kg and a total weight of 1,680 kg, the FP46 should be fastened to the ground urgently. The heavy-duty anchors included as a part of delivery to help to fix it to the ground.

With the 4 drip trays made of plastic and an oil pan made of metal, Krömer ensures that nothing goes wrong in the future.

Our "Krömer Easy Angles" can also be ordered as an option for the acceptance platform for €69. With the help of these practical offset plates, the hydraulic motor and control panel can be rotated at a 90° angle around the main column. It is thus possible for you to accommodate several stages in less space or to mount the columns close to the wall.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 4-post car lift "Hof" - FP46 has been tested and approved according to the Machinery Directive in accordance with Appendix IV with a type examination, so it was manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required).

Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel. The assembly must be carried out by a specialist with several years of experience in the field of lifting platforms.

* additional hand pump is required to release the lift from the safety catch

Not eligible for express shipping

Scope of Delivery

• KRÖMER 4-post lift FP46
• Electric motor 230V or 400V hydraulic unit
• German operating manual and inspection log for UVV inspection available for download in our FAQs or instructions and inspection log
• Heavy-duty anchors (12 pieces)

Not included in the delivery

• Oil – optionally available for separate order (filling volume: 15 liters)
• Vehicle
• Mobile chassis system
• Axle lift (optional – SX008)

Unloading information

Despite the high-quality paint finish, minor scratches may occur during logistics handling, quality control, or assembly.
