Mobile Scissor Lift For Tyre Service Kroemer X46
In stock
- Delivery time:
- Shipping cost:
- Load capacity up to 4,100 kg
- Lifting height up to 1,200 mm
- Total length with ramps up to 2,145 mm
- Built-in deflection aid
- Includes mobile kit/chassis for easy movement
- Exceptionally low clearance height (110 mm) despite 3 mm thicker ramp platform
- Low space requirement and absolute door clearance
- Limit switch, acoustic signal and CE stop when lowering as crush protection in the foot area (foot protection)
- Electromagnetic safety catch
- 1st safety catch: 380 mm
Lifting vans or similar vehicles is only suitable with the 400 volt version.
Description

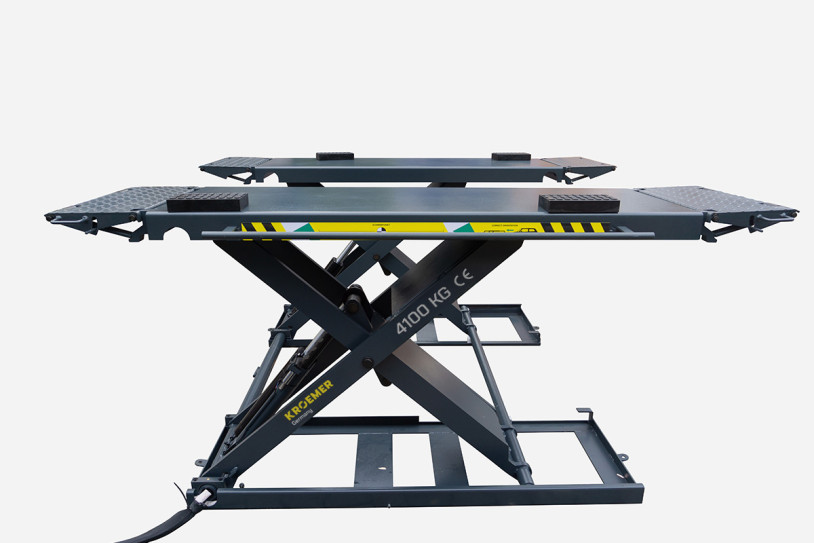

Mobile Short-Rise Scissor Lift Kroemer X46
- 1A processing quality with CE certificate for UVV approval
- Production in accordance with ISO 9001
- Double pipe system for symmetrical distribution of system pressure
- Low space requirement and absolute door clearance
- Powder-coated paint finish with scratch-resistant surface treatment
- Powerful electric motor in hydraulic oil with IP54 control unit
- Lowering safety device
- Low-wear bearings on the scissor joints
- Mechanical synchronisation control
- Two powerful, hard chrome-plated hydraulic cylinders
- Foot protection
- Electronic lift limitation via limit switch
- Long-term spare parts supply guaranteed
- Multiple safety features including hose rupture protection, overload valve, mechanical safety latches
The X46 scissor lift is specially designed to meet the requirements of tyre and bodywork repairs. However, it is also the perfect workstation for servicing and interior work in the workshop. With a manageable investment, you can quickly set up an additional universal workstation – without any foundation work.
Thanks to its flat design, the lift saves space when stored. With the optional mobile chassis (mobile kit), you can easily move the lift around your garage and even rotate it 360° on the spot. No compressed air is required – and therefore no compressor – to operate the safety locks, as the X46 locks automatically.
The powerful electric motor immersed in hydraulic oil ensures quiet and efficient operation. Another highlight of the control panel is the industrial-grade control system, fitted as standard. The electrical system of the Kroemer control unit consists of just three main components: microcomputer control, circuit board, and motor contactor. Only the 400-volt version is suitable for lifting vans or similar vehicles.
For initial commissioning, you will require 5 litres of HLP46 hydraulic oil (refer to operating instructions).
Unfortunately, this model is not designed for SUVs or other vehicles with a wheelbase over 3000 mm, such as T4–T6 (Bully), Vito, Viano, V-Class, pickups or larger.
For these vehicle types, we recommend the X40 model (please refer to the operating instructions and vehicle centre of gravity for further guidance).**

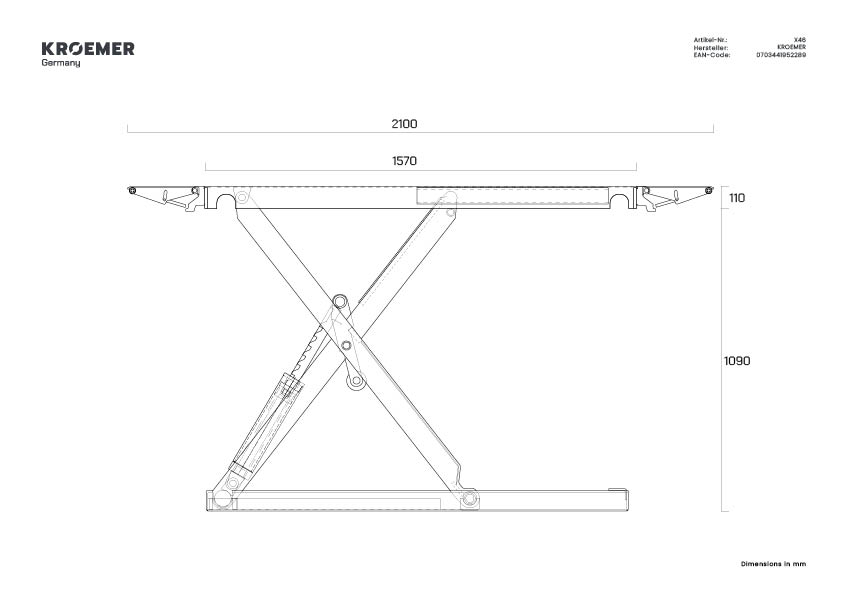

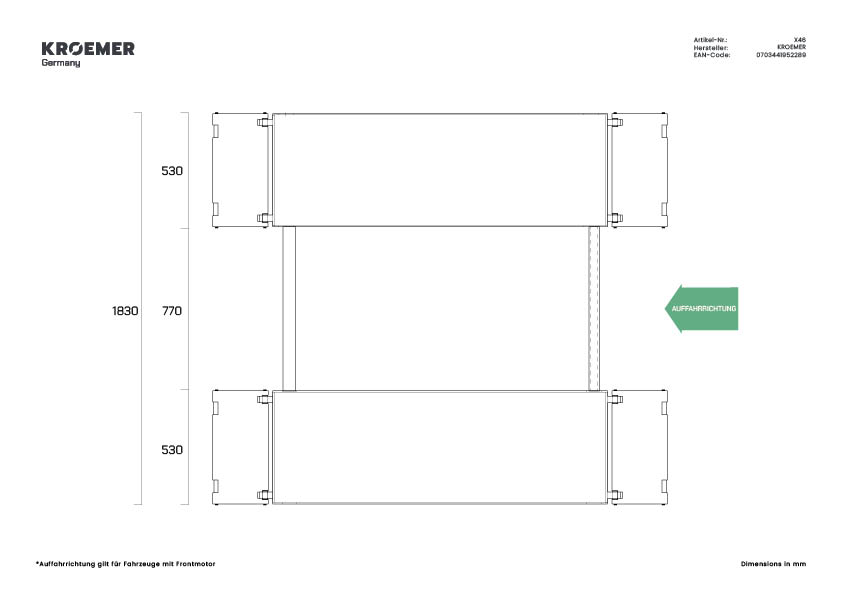

**Please refer to the technical drawing for the exact dimensions of the lifting platform.
Note: To ensure trouble-free operation of the scissor lift and to avoid damage to the vehicle, the room height must be at least 3.20 m or 3.50 m for mid-rise scissor lifts (depending on the vehicle and lifting height of the lift). Please refer to the technical drawing for the dimensions of the lift.
Technical Data
Technical Data
| SKU | X46 |
|---|---|
| EAN-Code | 0703441952289 |
| Delivery Time | 10 business days |
| Shipping costs | 499 £ |
| Suitable for express delivery | No |
| Motor power | 2.2 kW |
| Lifting height max. | 1.200 mm |
| Säulenabstand | 770 mm |
| Carrying Capacity | 4.100 kg |
| Clearance height | 110 mm |
| Weight | 606 kg |
| Netzfrequenz | Dead Man's switch (24V-low voltage) |
| Geräuschepegel | ≤ 60 dB(A) |
Delivery Scope
Delivery Scope
Not Eligible for Express Shipping
Scope of Delivery
- Mobile short-rise scissor lift up to 4.1t (without compressed air) Kroemer X46 fully automatic
- 230V or 400V electric motor hydraulic power unit
- Complete Kroemer mobile chassis (mobility kit) *
-
Heavy-duty anchors **
- Set of rubber blocks X215 (4 pieces)
- German operating instructions and inspection logbook for UVV approval as a download in our FAQs
- Invoice with VAT shown separately
Not Included in Delivery:
- Oil – can be optionally ordered (fill quantity: 5 liters)
- Mounting kit (optional)
- Second set of rubber blocks X215 (4 additional pieces)
- Vehicle
Below the description you will find the accessories section with a wide range of products and services for the X46.
* Note on the Mobilkit: The Mobilkit is intended solely for positioning and moving the scissor lift. The Mobilkit must be completely removed before commissioning and before each use of the lift. The lift may only be operated on a suitable surface and must be properly secured to the floor. Use with the mobile kit installed or without secure floor anchoring is prohibited and can result in serious injury or property damage.
** Note regarding the included heavy-duty anchors: Before installation, contact the anchor manufacturer or your concrete and reinforced concrete contractor to verify that the included heavy-duty anchors are suitable for the existing workshop floor. If the surface is unsuitable or if you have any doubts, you must procure a suitable and approved anchor system yourself.

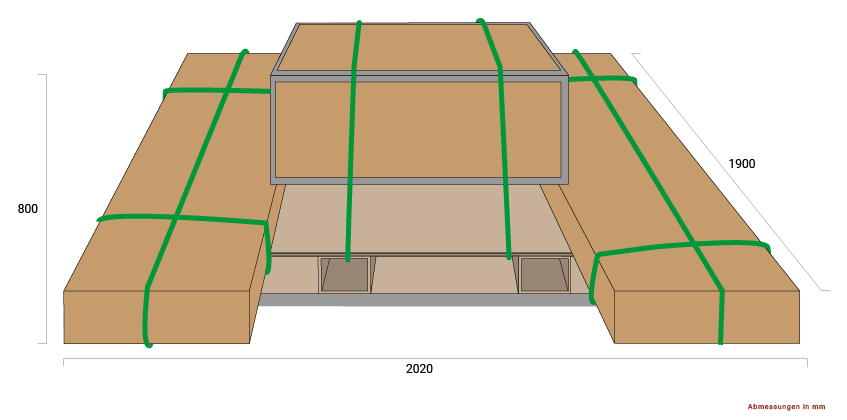

Information on Unloading
Even with high-quality paint, minor damage may occur due to logistics, quality control, and assembly.
The metal frames attached around the lift serve as protection and are part of the packaging.
Reviews
Reviews

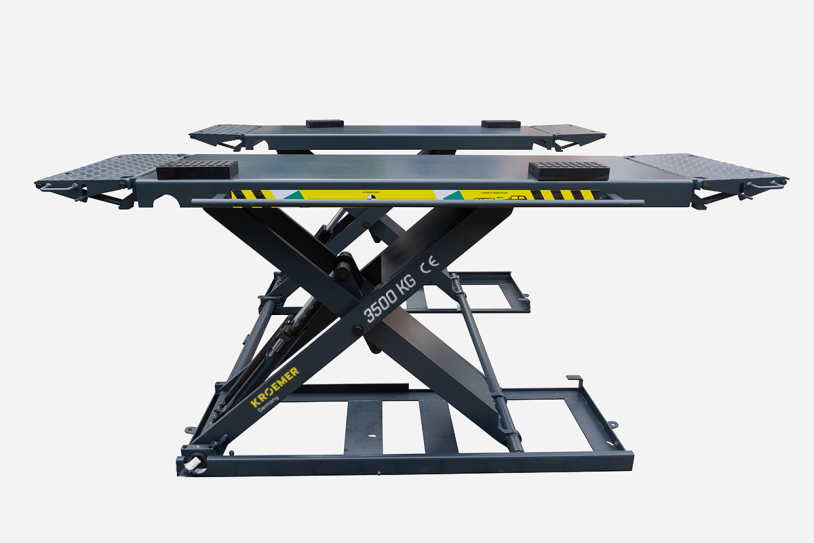

- ideal for maintenance, servicing and tyre work
