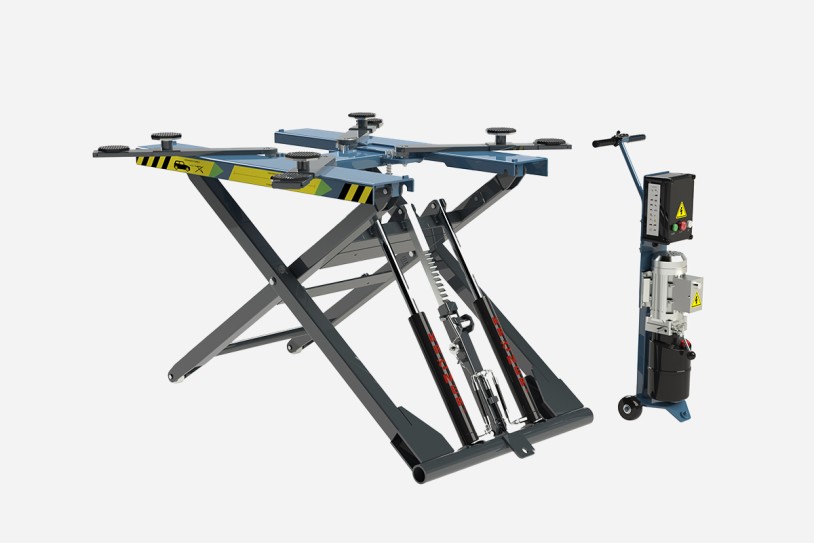

Mobile Scissor Lift Kroemer LK20

Mobile short-rise scissor lift Kroemer LK20 – 2,800 kg lifting capacity, 1,200 mm lifting height and ideal for small cars

The Kroemer LK20 scissor lift is an ideal addition to the workshop equipment of ambitious DIY mechanics. The short-rise scissor lift is particularly suitable for tyre maintenance and work on lower body components.

• High-quality workmanship with CE certification for safety inspection

• Manufactured in accordance with ISO 9001

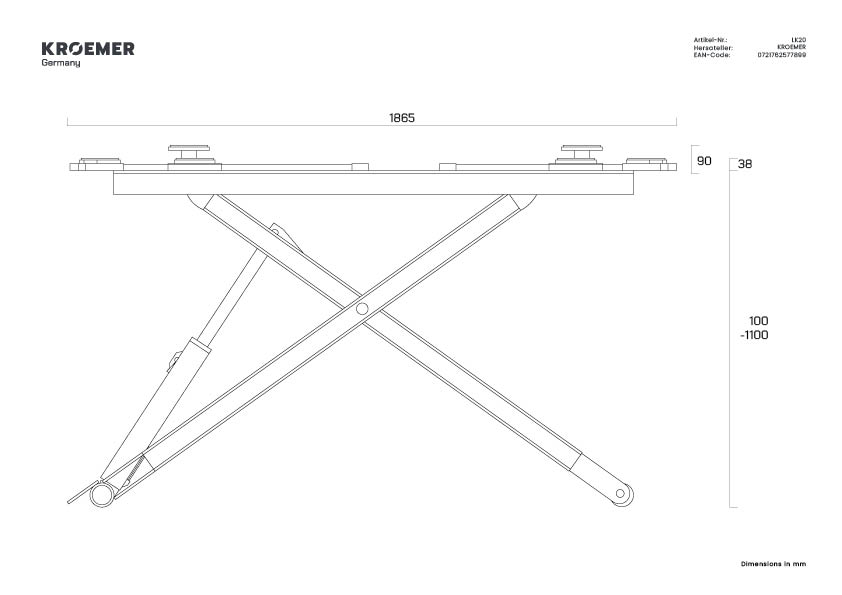

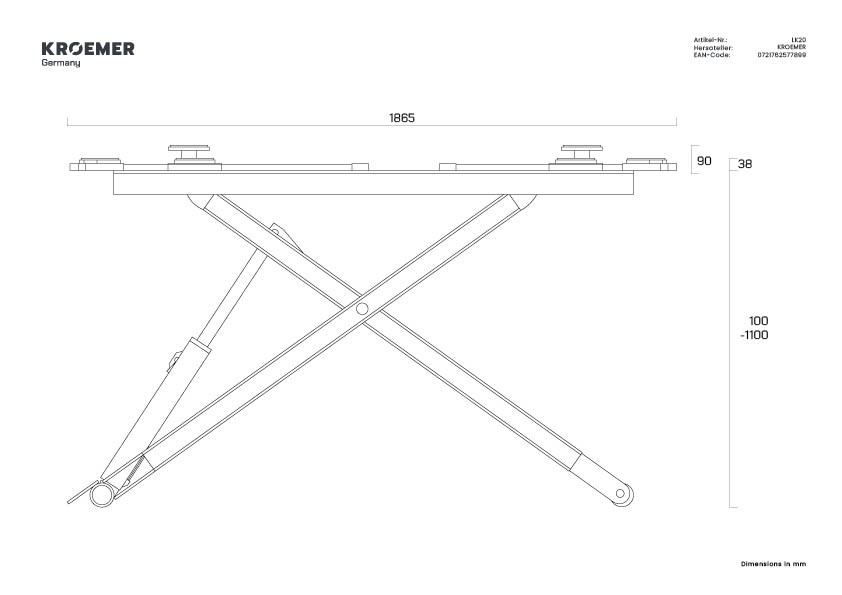

• Maximum lifting height: 1,200 mm

• Drive-over height: approx. 125 mm

• Minimum floor requirement: reinforced C20/25 concrete in accordance with DIN 1045:2001-D7

• Safety locking system with pneumatically released mechanical safety latch to prevent unintended lowering

• Audible warning signal during the final third of the lowering process

• Audible warning and CE stop during lowering to protect against foot entrapment

• Dead-man control using 24 V low voltage

• High-quality, heavy-duty construction

• Powder-coated finish with scratch-resistant surface treatment

• Powerful aluminium electric motor with IP54 control unit and aluminium hydraulic motor

• Lowering safety device

• Low-wear bearings at the scissor joints

• Mechanical synchronisation system

• Grease nipples on almost all joints

• Low installation requirements: only 150 mm of suitable concrete required

• Includes reversing mechanism

• Lowering speed adjustment directly at the lowering valve

No compressed air is required to operate this Kroemer scissor lift. This eliminates both the noise of a compressor and the additional cost of purchasing one.

The Kroemer lift offers a maximum lifting capacity of 2,800 kg and can be moved flexibly around the workshop thanks to its mobile chassis. Even where space is limited, the LK20 short-rise scissor lift can be moved into a free corner of the garage using a pulley system, which is not included in the scope of delivery.

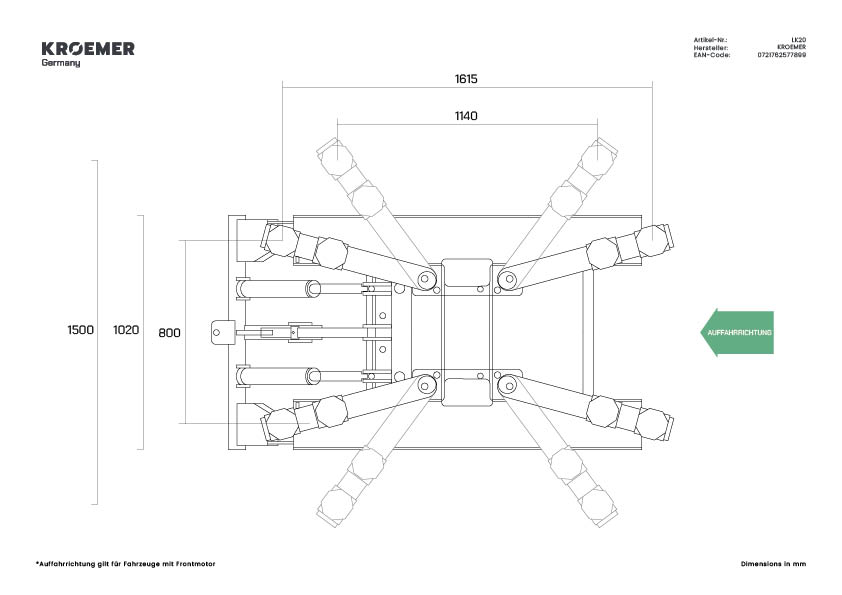

Thanks to the reinforced centre rail and the generous working surface measuring 1,700 x 246 mm, the Kroemer scissor lift is particularly suitable for lifting small vehicles.

The LK20 is equipped with a special scratch-resistant chassis featuring durable plastic components. This helps prevent unsightly scratches on the workshop floor while also allowing the vehicle lift to be moved easily and with minimal physical effort.

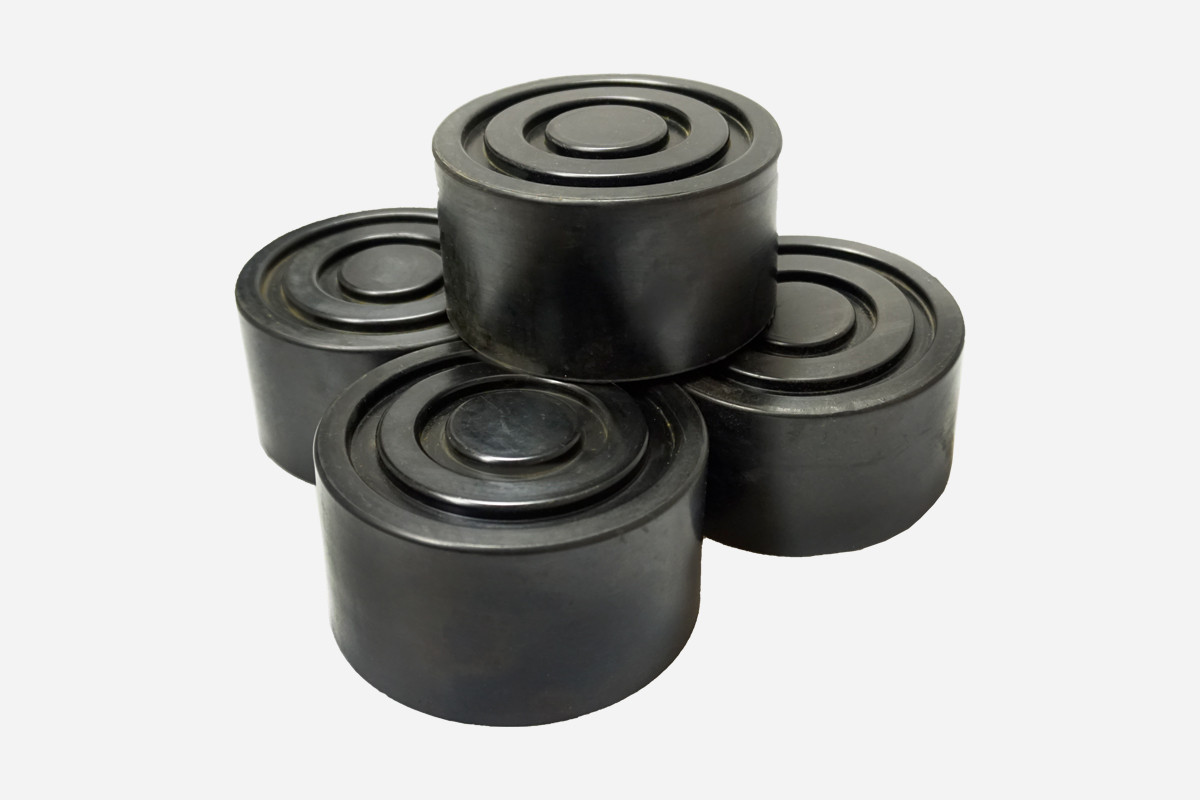

With the supplied rubber blocks, this powerful mobile short-rise scissor lift reaches its maximum lifting height of 1.20 metres in approximately 20 seconds – directly from its lowest position.

With particularly low vehicles, positioning the car correctly on a lift can sometimes be difficult. The Kroemer reversing mechanism provides a practical solution and enables vehicles to be lifted directly from the lowest starting position.

The mechanism also acts as a damping element for the platforms. This cushions the platforms when lowering and significantly reduces loud impact noises.

Mobile vehicle lifts are exposed to particularly high levels of stress during everyday workshop use. For this reason, both the electric motor and hydraulic pump of the Kroemer LK20 are enclosed in a robust aluminium housing. In addition to increased stability, this also improves motor cooling and supports a longer service life.

Are you a vehicle painter and need easy access to the vehicle sills? The LK20 is an excellent solution. If ground clearance is more important to you or you also want to lift larger vehicles, take a look at our 3,000 kg scissor lift.

Please note:

This lift is not suitable for vehicles with an extended wheelbase, such as the VW T6, Mercedes Vito, Viano, V-Class or larger vehicles. If you regularly work with such vehicles, we recommend our 3,000 kg X40 model with compressor or the X47 without compressor and with automatic unlocking.

Before purchasing, please also consider the maximum lifting height and the available ceiling height of your garage in combination with the vehicle. Kroemer GmbH accepts no liability for damage to the vehicle roof caused by operating errors or technical defects of the lift.

Not Eligible for Express Shipping

Included in delivery:

• Kroemer scissor lift LK20 - Second-quality goods
• Electric motor 230V hydraulic unit
• German operating manual and UVV inspection booklet available for download in our FAQs or here: instructions and inspection booklet
• Plug & cable
• Mobile chassis

Not included in delivery:

• Oil – optional, can be ordered separately (fill volume: 5 litres)
• Vehicle

Below the description, you will find the accessories section with a wide range of products and services for the LK20.

Delivery and unloading information

Despite the high-quality coating, scratches may occur during logistics, quality control, and assembly of the lift.

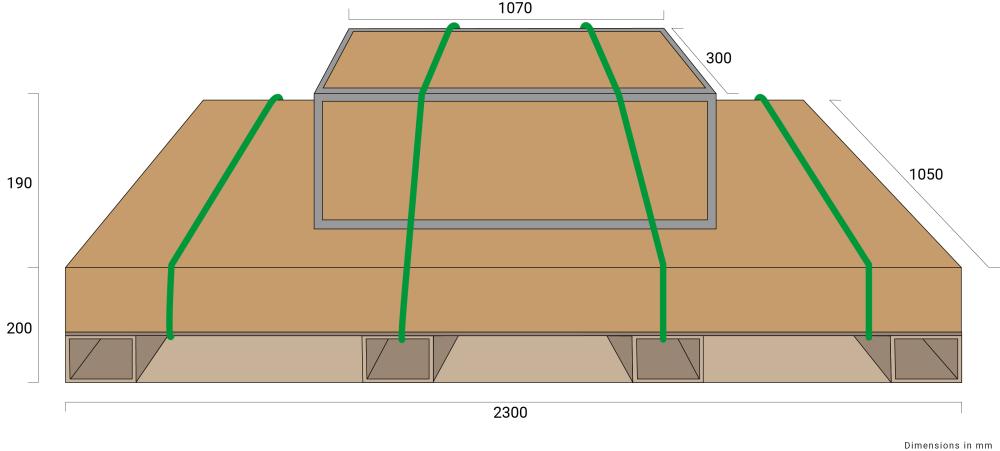

The metal frames attached around the lift serve as protective elements and are part of the packaging.
